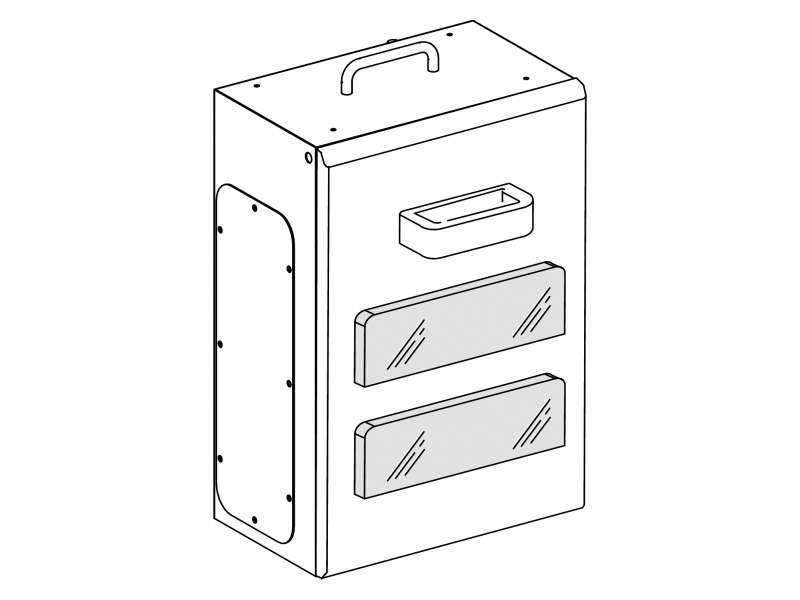

Schneider Electric OTCEPNA KUTIJA 160A 24 MODULA
TAP OFF UNIT 160A 24 MODULES...
VAT-exclusive price: 82.719,00 |
VAT-inclusive price: 99.262,80 |
TAP OFF UNIT 160A 24 MODULES
| range of product | Canalis |
|---|---|
| range compatibility | KS busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility | Canalis KS busbar trunkingplug-in |
| [Ie] rated operational current | 160 A |
| protection type | Circuit breaker: miniature circuit breaker (MCB) |
| mounting mode | Plug-in with fixed polarity |
| tap-off unit polarity | 3L+N+PE |
| colour | White (RAL 9001) |
| device application | Medium power distribution |
|---|---|
| provided equipment |
Circuit-breaker to be ordered separately blanking plate 4 DIN rail |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| [Ui] rated insulation voltage |
400 V depending on protective device 500 V depending on protective device 690 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Lugs - ISO50 35 mm² flexible Lugs - ISO50 50 mm² rigid |
| door/cover opening side | Down |
| tap-off unit disconnection mode | By drawing out |
| standards |
IEC 61439-6 IEC 61439-1 |
| body material | Metal |
| 18 mm pitches | 24 |
| width | 494 mm |
| depth | 308 mm |
| depth (door open) | 650 mm |
| height | 303 mm |
| net weight | 10.69 kg |
| earthing system |
TT TN-S IT |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 12.368 kg |
| Package 1 Height | 33 cm |
| Package 1 width | 34 cm |
| Package 1 Length | 52.5 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
-
Canalis KS KSB160SM424
