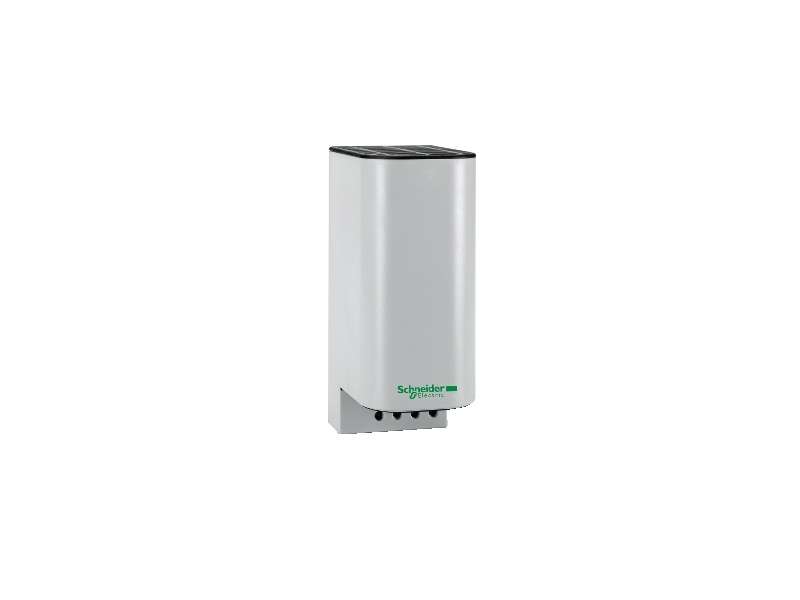

Schneider Electric ClimaSys PTC grejač 100W, 12-24V izolovan;NSYCR100WU1C

ClimaSys PTC heating resistance 100W, 12-24V insulate...

Brand: Schneider Electric
Product Code: NSYCR100WU1C
Availability: Check availability

VAT-exclusive price: 17.320,00

VAT-inclusive price: 20.784,00

Qnt:

Description
Specification

ClimaSys PTC heating resistance 100W, 12-24V insulate

Main
range	ClimaSys
product name	ClimaSys CR
product or component type	Resistance heater
power range	100 W
input voltage	12...24 V DC
electrical connection	4 screw terminals 2.5 mm²

Complementary
operating position	Vertical
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
electrical insulation class	Class II
product certifications	VDE UL
material	Body: extruded aluminium Cover: plastic
height	150 mm external:
width	60 mm external:
depth	90 mm external:
condition of use	Electrical protection is needed Heaters must be installed with a thermal controller Air sealed enclosure
fixing mode	By clips
mounting support	35 mm DIN rail

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	13.0 cm
Number of Units in Package 1	1
Package 2 Width	30.0 cm
Package 2 Height	20.0 cm
Package 2 Weight	3.6 kg
Package 1 Width	10.0 cm
Package 1 Height	7.0 cm
Package 1 Weight	360.0 g
Number of Units in Package 2	10
Unit Type of Package 2	PAL
Package 2 Length	40.0 cm
