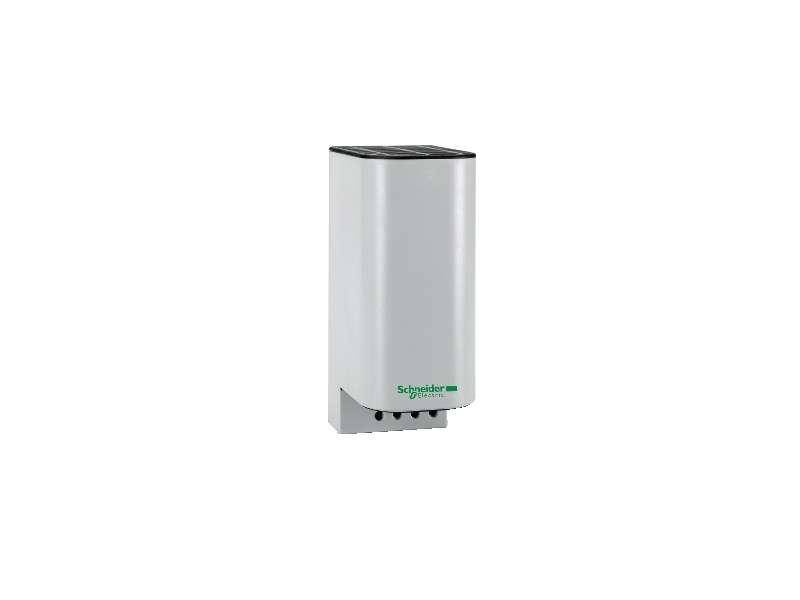

Schneider Electric ClimaSys PTC grejač 150W, 12-24V izolovan;NSYCR150WU1C
ClimaSys PTC heating resistance 150W, 12-24V insulate...
VAT-exclusive price: 21.903,00 |
VAT-inclusive price: 26.283,60 |
ClimaSys PTC heating resistance 150W, 12-24V insulate
| range | ClimaSys |
|---|---|
| product name | ClimaSys CR |
| product or component type | Resistance heater |
| power range | 150 W |
| input voltage | 12...24 V DC |
| electrical connection | 4 screw terminals 2.5 mm² |
| operating position | Vertical |
|---|---|
| ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| electrical insulation class | Class II |
| product certifications |
VDE UL |
| material |
Body: extruded aluminium Cover: plastic |
| height | 150 mm external: |
| width | 60 mm external: |
| depth | 90 mm external: |
| condition of use |
Air sealed enclosure Electrical protection is needed Heaters must be installed with a thermal controller |
| fixing mode | By clips |
| mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 17 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 28 cm |
| Package 2 Height | 30 cm |
| Package 2 Weight | 500 g |
| Package 1 Width | 10 cm |
| Package 1 Height | 7 cm |
| Package 1 Weight | 500 g |
| Number of Units in Package 2 | 1 |
| Unit Type of Package 2 | CAR |
| Package 2 Length | 38 cm |
| Warranty | 18 months |
|---|
