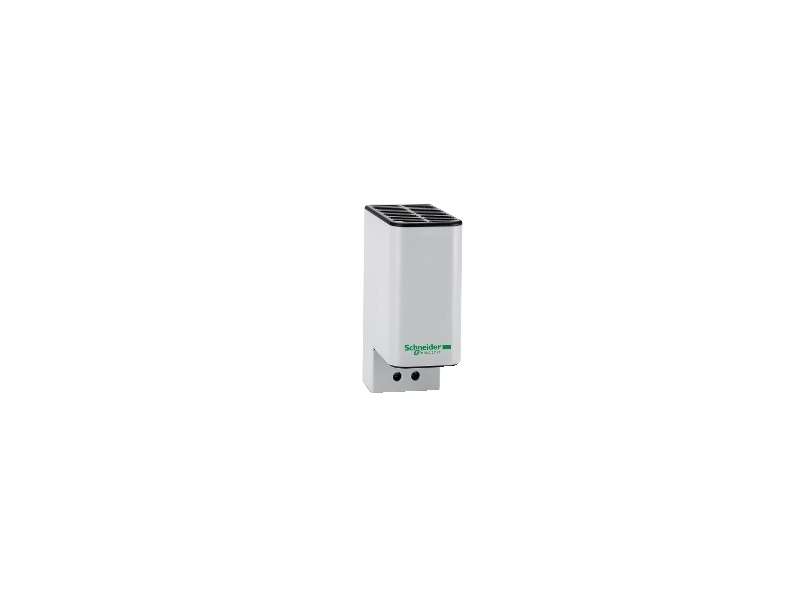

Schneider Electric ClimaSys PTC grejač 10W,110-250V izolovan;NSYCR10WU2C

ClimaSys PTC heating resistance 10W,110-250V insulate...

Brand: Schneider Electric
Product Code: NSYCR10WU2C
Availability: Check availability

VAT-exclusive price: 6.683,00

VAT-inclusive price: 8.019,60

Qnt:

Description
Specification

ClimaSys PTC heating resistance 10W,110-250V insulate

Main
range	ClimaSys
product name	ClimaSys CR
product or component type	Resistance heater
power range	10 W
input voltage	110...250 V AC 50/60 Hz
electrical connection	2 screw terminals 2.5 mm²

Complementary
operating position	Vertical
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
electrical insulation class	Class II
product certifications	VDE UL
material	Body: extruded aluminium Cover: plastic
height	98 mm external:
width	38 mm external:
depth	75 mm external:
condition of use	Electrical protection is needed Air sealed enclosure Heaters must be installed with a thermal controller
fixing mode	By clips
mounting support	35 mm DIN rail

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	11.0 cm
Number of Units in Package 1	1
Package 3 Width	100.0 cm
Package 3 Weight	114.6 kg
Package 2 Width	40.0 cm
Package 2 Height	19.0 cm
Package 2 Weight	9.46 kg
Number of Units in Package 3	500
Unit Type of Package 3	PAM
Package 3 Height	51.0 cm
Package 3 Length	120.0 cm
Package 1 Width	8.0 cm
Package 1 Height	4.5 cm
Package 1 Weight	160.0 g
Number of Units in Package 2	50
Unit Type of Package 2	CAR
Package 2 Length	60.0 cm
