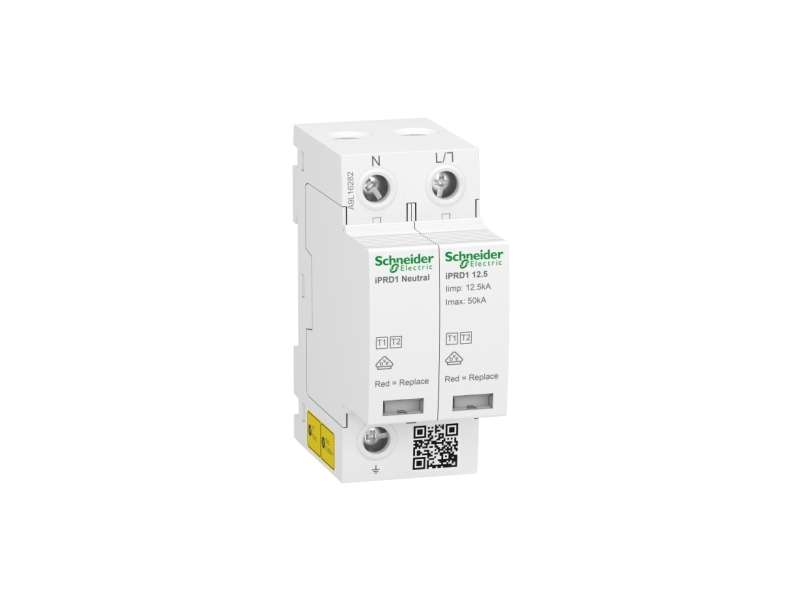

Modular surge arrester, Acti9 iPRD1 12.5r, 1 P + N, 350 V, with remote transfert
| range of product | Acti9 |
|---|---|
| product name | Acti9 iPRD1 |
| product or component type | Surge arrester |
| device short name | IPRD1 12.5 |
| device application | Distribution |
| standards |
EN 61643-11:2012 IEC 61643-11:2011 |
| quality labels |
CE EAC VDE |
| poles description | 1P + N |
| remote signalling | With |
| signal contacts composition | 1 SD (1 C/O) |
| surge arrester type | Electrical distribution network |
| earthing system |
TN-S TT |
| surge arrester class type | Type 1 + 2 |
|---|---|
| surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50...60 Hz |
| [In] nominal discharge current | 20 kA |
| [Imax] maximum discharge current | 50 kA |
| [Iimp] impulse current |
Common mode: 50 kA N/PE Differential mode: 12.5 kA L/N |
| [Uc] maximum continuous operating voltage |
Differential mode: 350 V L/N Common mode: 255 V N/PE |
| maximum [Up] voltage protection level | <1.5 kV type 1 + 2 |
| residual current | 0.003 mA N/PE |
| [Ut] temporary overvoltage |
337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode |
| disconnector device type |
Associated fuse gG 160 A 120 kA standard Associated circuit breaker Compact NSX160E 80 A 25 kA standard |
| 9 mm pitches | 4 |
| height | 89 mm |
| width | 36 mm |
| depth | 69 mm |
| net weight | 290 g |
| colour | White (RAL 9003) |
| material | PA6 |
| connections - terminals |
Tunnel type terminal (phase) 10…25 mm² flexible Tunnel type terminal (phase) 10…35 mm² rigid Tunnel type terminal (earth) 16…25 mm² flexible Tunnel type terminal (earth) 16…35 mm² rigid |
| wire stripping length | 14 mm |
| tightening torque | 3.5 N.m |
| IK degree of protection | IK05 conforming to IEC 62262 |
|---|---|
| pollution degree | 3 |
| relative humidity | 5…95 % |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 326.0 g |
| Package 1 Height | 4.5 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 6.346 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Weight | 109.536 kg |
| Package 3 Height | 75.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 60.0 cm |
