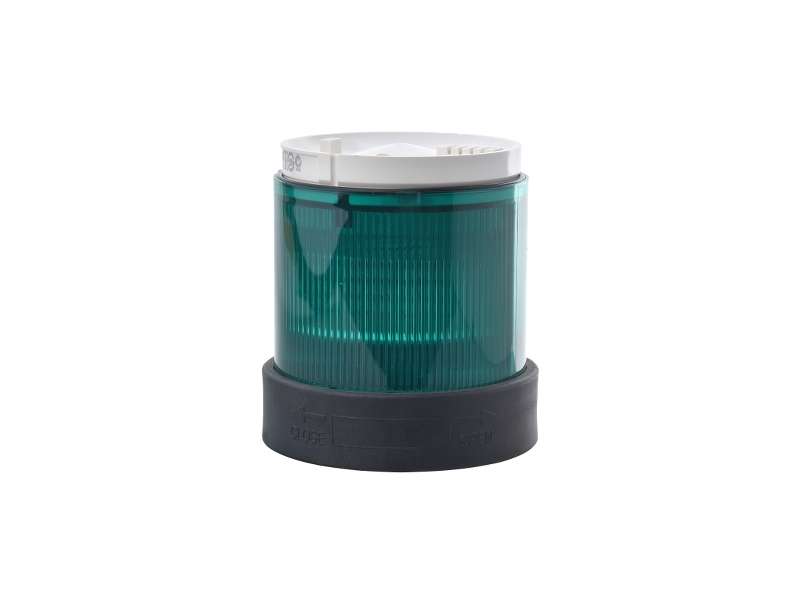

Schneider Electric Ø 70 mm svetleća jedinica - trepćuća - zelena - IP65 - 24 V;XVBC5B3

Schneider Electric Ø 70 mm svetleća jedinica - trepćuća - zelena - IP65 - 24 V;XVBC5B3

Harmony XVB, Illuminated unit for modular tower lights, plastic, green, Ø70, flashing, integral LED, 24 V AC/DC...

Brand: Schneider Electric
Product Code: XVBC5B3
Availability: Check availability
VAT-exclusive price: 6.396,00
VAT-inclusive price: 7.675,20

Harmony XVB, Illuminated unit for modular tower lights, plastic, green, Ø70, flashing, integral LED, 24 V AC/DC


Main
range of product Harmony XVB Universal
product or component type Indicator bank
beacon or indicator bank unit type Illuminated unit
signalling type Flashing
mounting diameter 70 mm
component name XVBC
material Polycarbonate
light source Integral LED, green
bulb type Protected LED
[Us] rated supply voltage 24 V AC/DC
Complementary
assembly style Customer assembly, up to 5 units
connections - terminals Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
current consumption < 47 mA AC/DC
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
flashing frequency 1 Hz
CAD overall width 70 mm
CAD overall height 63 mm
CAD overall depth 70 mm
net weight 0.17 kg
Environment
pollution degree 2
product certifications CCC
EAC
CSA C22-2 No 14
UL 508
standards EN/IEC 60947-5-1
protective treatment TC
ambient air temperature for storage -40…70 °C
electrical shock protection class Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140
IP degree of protection IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529
NEMA degree of protection Type 4X conforming to UL (indoor)
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 134.0 g
Package 1 Height 8.0 cm
Package 1 width 8.0 cm
Package 1 Length 9.5 cm
Unit Type of Package 2 S03
Number of Units in Package 2 36
Package 2 Weight 5.62 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm

Contractual warranty
Warranty 18 months

Main
range of product Harmony XVB Universal
product or component type Indicator bank
beacon or indicator bank unit type Illuminated unit
signalling type Flashing
mounting diameter 70 mm
component name XVBC
material Polycarbonate
light source Integral LED, green
bulb type Protected LED
[Us] rated supply voltage 24 V AC/DC
Complementary
assembly style Customer assembly, up to 5 units
connections - terminals Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
current consumption < 47 mA AC/DC
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
flashing frequency 1 Hz
CAD overall width 70 mm
CAD overall height 63 mm
CAD overall depth 70 mm
net weight 0.17 kg
Environment
pollution degree 2
product certifications CCC
EAC
CSA C22-2 No 14
UL 508
standards EN/IEC 60947-5-1
protective treatment TC
ambient air temperature for storage -40…70 °C
electrical shock protection class Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140
IP degree of protection IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529
NEMA degree of protection Type 4X conforming to UL (indoor)
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 134.0 g
Package 1 Height 8.0 cm
Package 1 width 8.0 cm
Package 1 Length 9.5 cm
Unit Type of Package 2 S03
Number of Units in Package 2 36
Package 2 Weight 5.62 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm

Contractual warranty
Warranty 18 months
