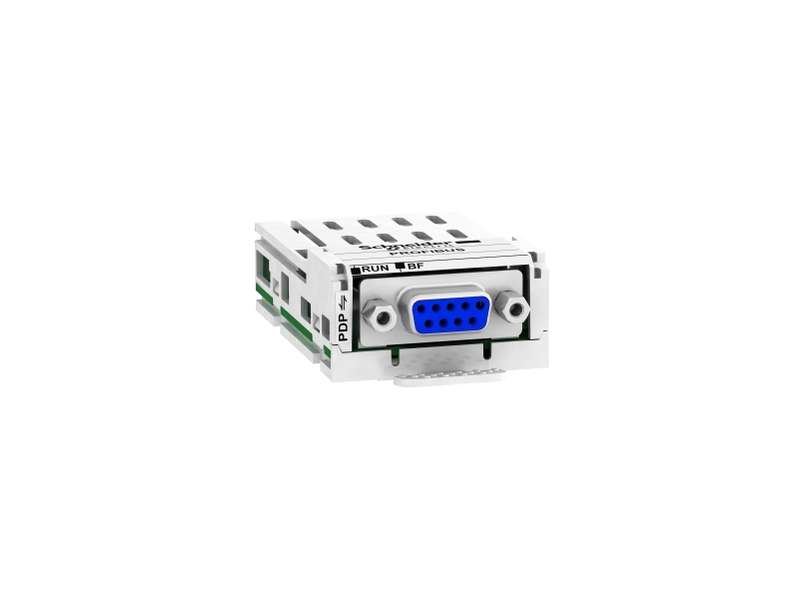

Schneider Electric Profibus DP komunikacioni modul;VW3A3607

PROFIBUS DP communication module...

Brand: Schneider Electric
Product Code: VW3A3607
Availability: Check availability

VAT-exclusive price: 21.336,00

VAT-inclusive price: 25.603,20

Qnt:

Description
Specification

PROFIBUS DP communication module

Main
range of product	Altivar
product or component type	Communication module

Complementary
range compatibility	Altivar 32 Altivar Machine ATV340 except Sercos drives Altivar Easy 610 Lexium 32 Altivar Process ATV900 Altivar Process ATV600 Altivar Machine ATV320 Altivar Process Modular
product compatibility	Lexium 32
communication port protocol	Profibus DP V1
electrical connection	1 female connector SUB-D 9
transmission rate	9.6 kbps...12 Mbps
addressing	1...126 configurable by graphic terminal/SoMove software Configuration settings
communication service	4 configurable telegrams Mapping of the process data from the master Parameters management compliant with PROFIdrive V4.1 Several DP V1 messaging modes Drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402)
display type	1 LED for RUN 1 LED for bus fault (BF)
diagnostic function	Diagnostic data with VSD status Host drive handled from two masters (MS0 and MS1) Standard identification and maintenance requests
bus profile	PROFIdrive CiA 402

Environment
standards	IEC 61800-7-201 (CiA 402)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	61.0 g
Package 1 Height	4.7 cm
Package 1 width	6.1 cm
Package 1 Length	9.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	100
Package 2 Weight	6.798 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
