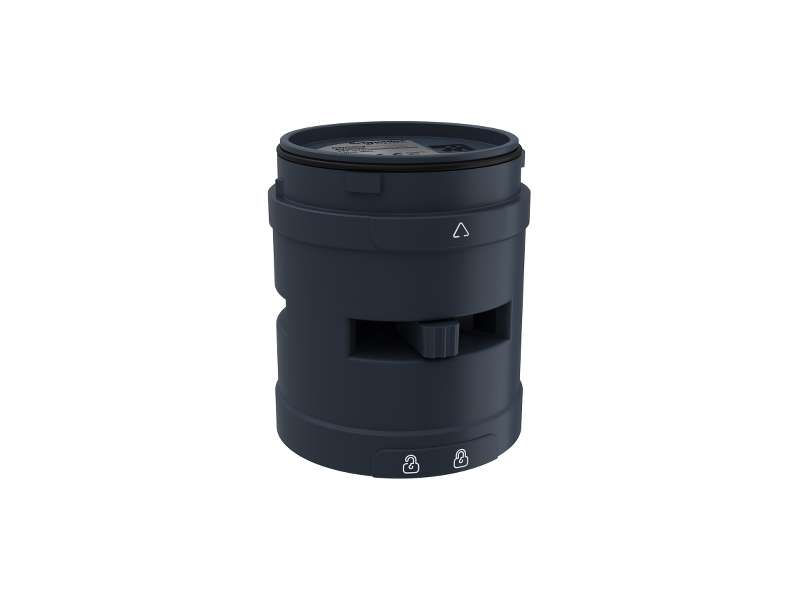

Schneider Electric Zvučna jedinica - Ø 60 mm - XVU zujalica - IP54 - 24 V AC/DC, crni;XVUC9S

Harmony XVU, Audible unit, black, Ø60, buzzer, 24 V AC/DC...

Brand: Schneider Electric
Product Code: XVUC9S
Availability: Check availability

VAT-exclusive price: 8.468,00

VAT-inclusive price: 10.161,60

Qnt:

Description
Specification

Harmony XVU, Audible unit, black, Ø60, buzzer, 24 V AC/DC

Main
range of product	Harmony XVU
product or component type	Modular tower light
beacon or indicator bank unit type	Buzzer unit
mounting diameter	60 mm
component name	XVU
housing colour	Black

Complementary
signalling type	Continuous or intermittent buzzer
material	PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94
localisation on device	Top
assembly style	Customer assembly
[Us] rated supply voltage	24 V AC/DC
maximum power dissipation in W	1.7 W
acoustic level	85 dB at 1 m
sound frequency	2635 Hz
current consumption	<= 70 mA
length	58 mm
net weight	0.077 kg

Environment
product certifications	UL CE CSA
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…50 °C
IP degree of protection	IP54

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	172.0 g
Package 1 Height	9.0 cm
Package 1 width	13.3 cm
Package 1 Length	9.1 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	192
Package 2 Weight	39.68 kg
Package 2 Height	70.0 cm
Package 2 width	80.0 cm
Package 2 Length	60.0 cm
Unit Type of Package 3	S03
Number of Units in Package 3	24
Package 3 Weight	4.99 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm
