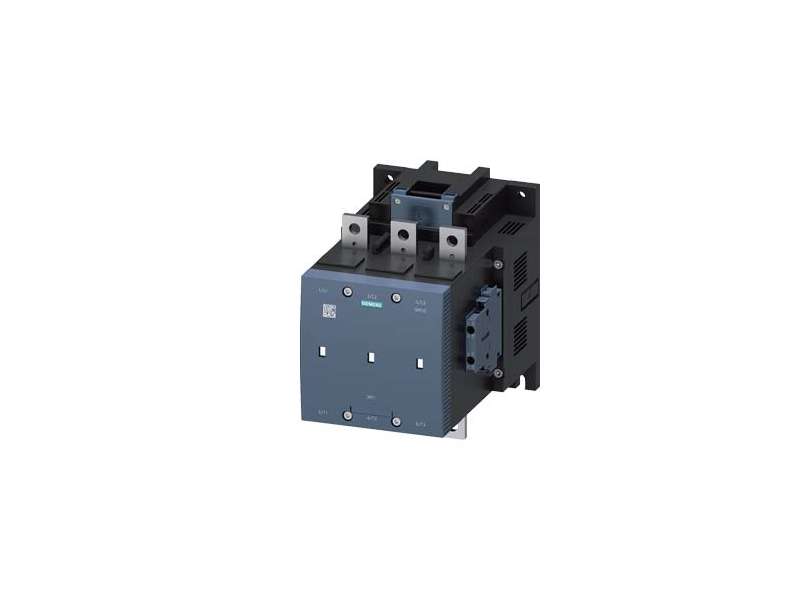

SIEMENS Kontaktor 3RT1275-6AP36
The Siemens 3RT1275-6AP36 is a high-performance vacuum contactor from the 3RT1 series, size S12. It is designed for motor switching up to 400 A and 200 kW at...
VAT-exclusive price: 161.389,37 |
VAT-inclusive price: 193.667,24 |
The Siemens 3RT1275-6AP36 is a high-performance vacuum contactor from the 3RT1 series, size S12. It is designed for motor switching up to 400 A and 200 kW at 400 V AC, with a control coil rated for 220–240 V AC/DC. The contactor features 3 NO main contacts and 2 NO + 2 NC auxiliary contacts. With vacuum arc suppression, robust construction, and screw terminals, it ensures long-lasting reliability in demanding industrial environments.
| Product Specification | |
|---|---|
| Product Code | 3RT1275-6AP36 |
| Type | Vacuum Motor Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 400 A |
| Power Rating | 200 kW (AC-3 / 400 V) |
| Control Voltage | 220–240 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Arc Suppression | Vacuum Interruption |
| Connection Type | Screw Terminals |
| Weight | 5.8 kg |
