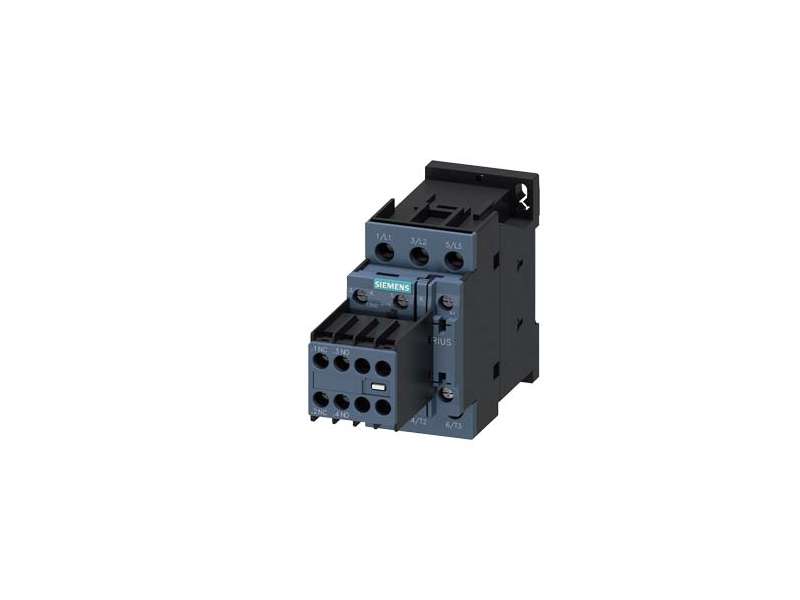

SIEMENS KONTAKTOR 3RT2026-1AC24 25A 24VAC 2O+2C
The 3RT2026-1AC24 AC-3 power contactor has a rated current of 25 A and supports loads up to 11 kW at 400 V. It features 2 NO + 2 NC contacts and operates with...
VAT-exclusive price: 5.542,62 |
VAT-inclusive price: 6.651,15 |
The 3RT2026-1AC24 AC-3 power contactor has a rated current of 25 A and supports loads up to 11 kW at 400 V. It features 2 NO + 2 NC contacts and operates with a 24 V AC coil (50/60 Hz). Designed in a 3-pole S0 format with screw terminals, it ensures reliable switching of motors and other industrial equipment.
| Product Specification | |
|---|---|
| Product Name | 3RT2026-1AC24 |
| Type | Power Contactor |
| AC-3 Rated Current | 25 A |
| AC-3 Power | 11 kW @ 400 V |
| Contact Configuration | 2 NO + 2 NC |
| Coil Voltage | 24 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Screw terminal |
| Weight | 0.38 kg |
