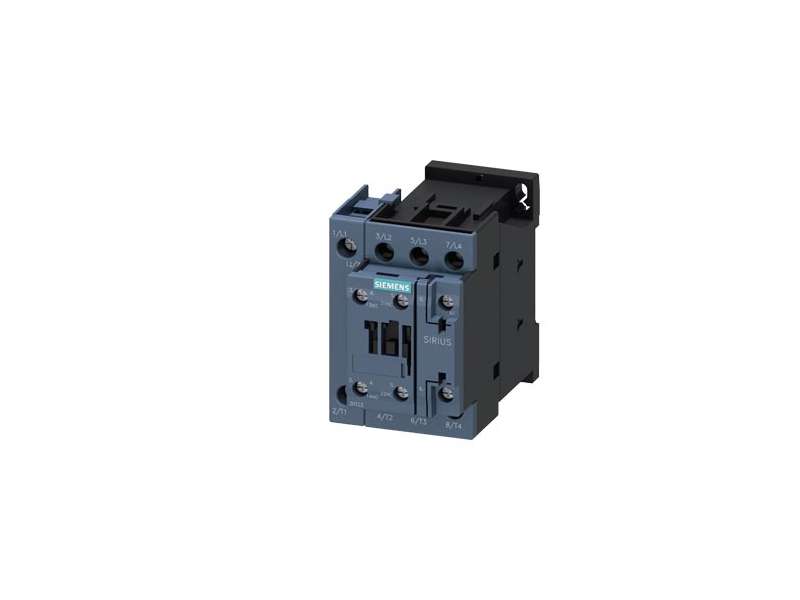

SIEMENS KONTAKTOR 3RT2326-1AP00 40A 230VAC 1O+1C
The 3RT2326-1AP00 contactor is a 4-pole device designed for AC-1 applications, rated at 40 A / 400 V at 40 °C ambient temperature. It operates on 230 V AC (50...
VAT-exclusive price: 5.584,73 |
VAT-inclusive price: 6.701,67 |
The 3RT2326-1AP00 contactor is a 4-pole device designed for AC-1 applications, rated at 40 A / 400 V at 40 °C ambient temperature. It operates on 230 V AC (50 Hz) control voltage and features a contact configuration of 1 NO + 1 NC. Its compact Size S0 and screw terminals make it ideal for panel integration and control systems.
| Product Specification | |
|---|---|
| Product Name | 3RT2326-1AP00 |
| Contactor Type | Power Contactor |
| Rated Current (AC-1) | 40 A |
| Rated Voltage | 400 V |
| Ambient Temperature | Up to 40 °C |
| Main Contacts | 1 NO + 1 NC |
| Control Voltage | 230 V AC / 50 Hz |
| Number of Poles | 4 |
| Size | S0 |
| Connection Type | Screw terminals |
| Weight | 0.45 kg |
