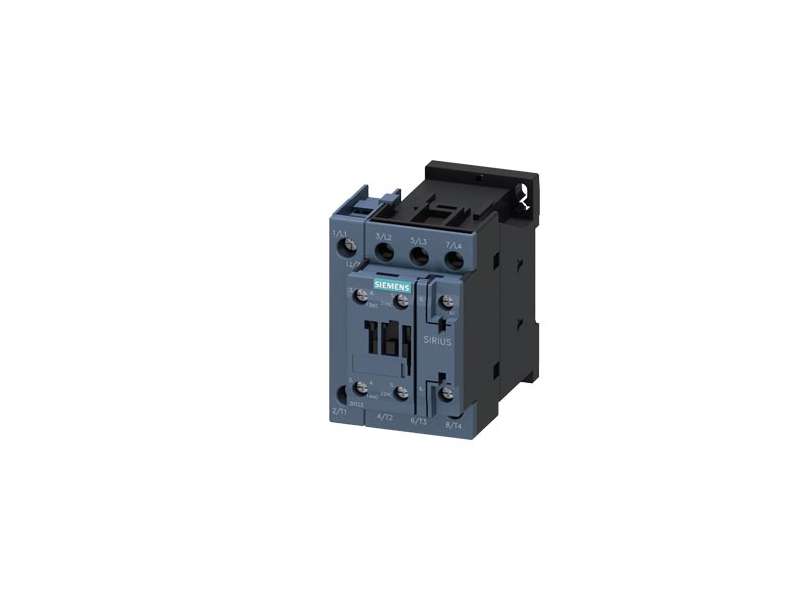

SIEMENS KONTAKTOR 3RT2326-1AL20 40A 230VAC 4NO
The 3RT2326-1AL20 contactor is a 4-pole device with 4 main NO contacts and integrated auxiliary contacts (1 NO + 1 NC). Designed for AC-1 applications up to 40 A,...
VAT-exclusive price: 5.584,73 |
VAT-inclusive price: 6.701,67 |
The 3RT2326-1AL20 contactor is a 4-pole device with 4 main NO contacts and integrated auxiliary contacts (1 NO + 1 NC). Designed for AC-1 applications up to 40 A, it operates on a 230 V AC (50/60 Hz) control voltage. Ideal for industrial automation and motor control systems. Compact Size S0 and screw terminals provide easy and reliable installation.
| Product Specification | |
|---|---|
| Product Name | 3RT2326-1AL20 |
| Contactor Type | Power Contactor |
| Rated Current (AC-1) | 40 A |
| Main Contacts | 4 NO |
| Auxiliary Contacts | 1 NO + 1 NC integrated |
| Control Voltage | 230 V AC / 50–60 Hz |
| Size | S0 |
| Connection Type | Screw terminals |
| Weight | 0.45 kg |
