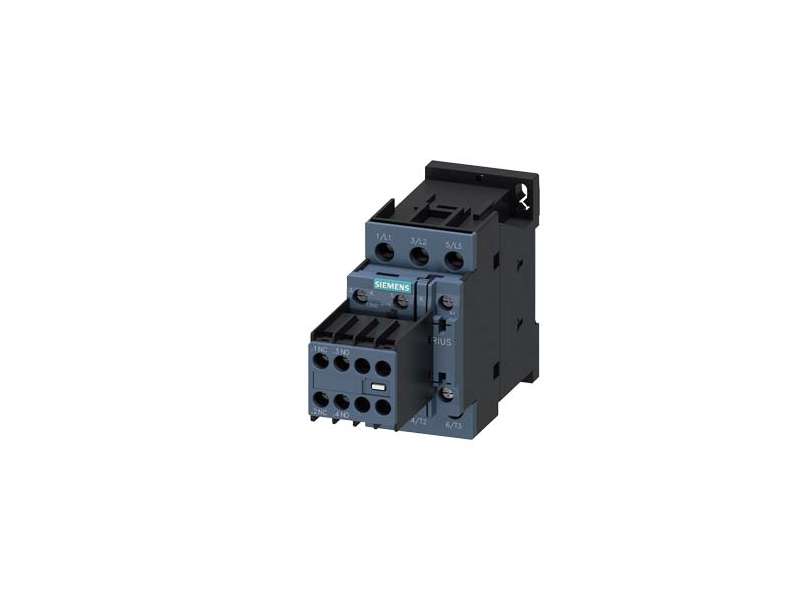

SIEMENS KONTAKTOR 3RT2026-1AG24 25A 110VAC 2O+2C
The 3RT2026-1AG24 AC-3 contactor has a rated current of 25 A and handles motor loads up to 11 kW at 400 V. It features 2 NO + 2 NC contacts and operates with...
VAT-exclusive price: 5.542,62 |
VAT-inclusive price: 6.651,15 |
The 3RT2026-1AG24 AC-3 contactor has a rated current of 25 A and handles motor loads up to 11 kW at 400 V. It features 2 NO + 2 NC contacts and operates with a 110 V AC coil (50/60 Hz). Designed for industrial motor control, its compact S0 size and screw terminal connection allow for easy and secure panel installation.
| Product Specification | |
|---|---|
| Product Name | 3RT2026-1AG24 |
| Type | Power Contactor |
| AC-3 Rated Current | 25 A |
| AC-3 Motor Power | 11 kW @ 400 V |
| Contact Configuration | 2 NO + 2 NC |
| Coil Voltage | 110 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Screw terminal |
| Weight | 0.38 kg |
