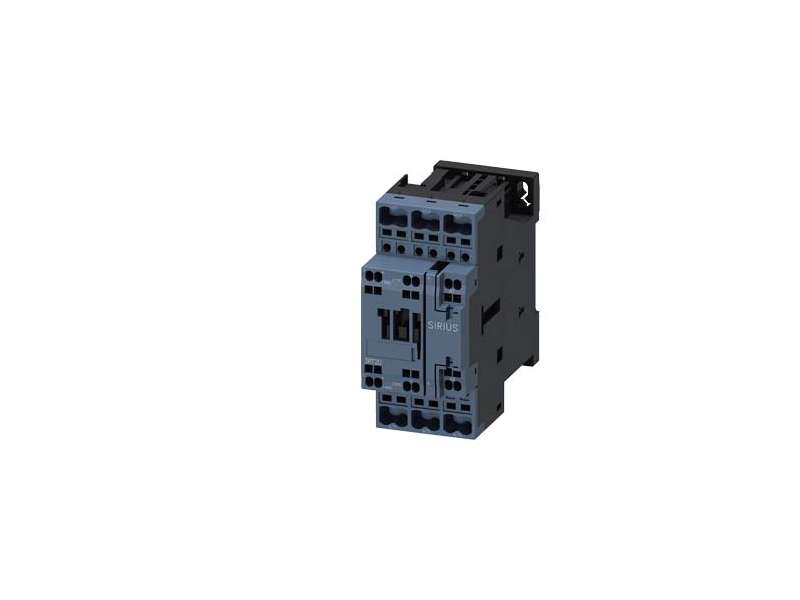

SIEMENS KONTAKTOR 3RT2028-2AP00 38A 230VAC 1O+1C
The 3RT2028-2AP00 contactor is designed for controlling three-phase motors up to 18.5 kW at 400 V. It features 1 NO + 1 NC contacts and a 230 V AC coil (50 Hz)....
VAT-exclusive price: 7.491,32 |
VAT-inclusive price: 8.989,58 |
The 3RT2028-2AP00 contactor is designed for controlling three-phase motors up to 18.5 kW at 400 V. It features 1 NO + 1 NC contacts and a 230 V AC coil (50 Hz). Spring-type (push-in) terminals ensure fast and reliable wiring, while its compact Size S0 design suits various industrial panel systems.
| Product Specification | |
|---|---|
| Product Name | 3RT2028-2AP00 |
| Type | Power Contactor |
| AC-3 Rated Current | 38 A |
| Motor Power (AC-3) | 18.5 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Coil Voltage | 230 V AC, 50 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Spring terminal |
| Weight | 0.47 kg |
