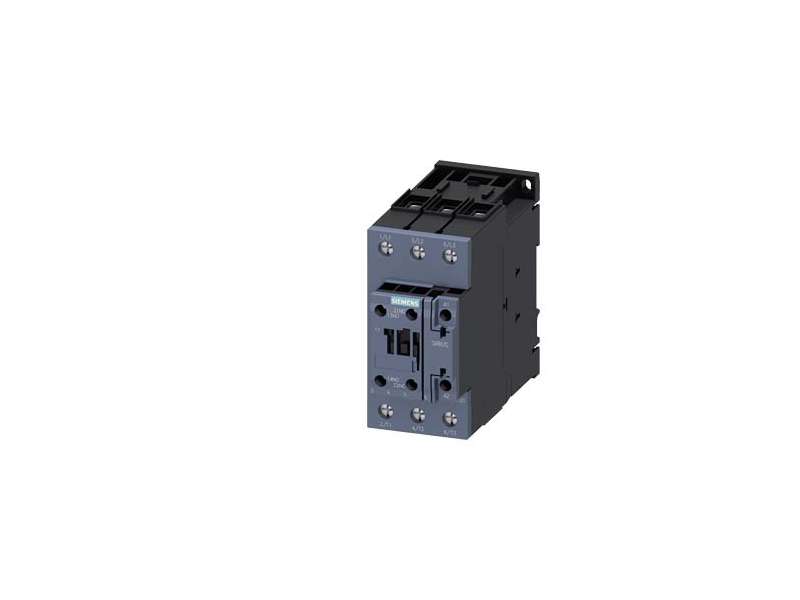

SIEMENS KONTAKTOR 3RT2035-1NF30 40A AC/DC 84-155
The 3RT2035-1NF30 power contactor is designed for controlling three-phase motors up to 18.5 kW at 400 V in AC-3 operation. It operates on a wide AC/DC voltage...
VAT-exclusive price: 12.037,32 |
VAT-inclusive price: 14.444,78 |
The 3RT2035-1NF30 power contactor is designed for controlling three-phase motors up to 18.5 kW at 400 V in AC-3 operation. It operates on a wide AC/DC voltage range (84–155 V) and includes a built-in varistor for surge protection. Rated at 40 A, it has 1 NO + 1 NC contacts, 3-pole design, screw terminals, and comes in Size S2.
| Product Specification | |
|---|---|
| Product Name | 3RT2035-1NF30 |
| Type | Power Contactor |
| Rated Current (AC-3) | 40 A |
| Motor Power | 18.5 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Control Voltage | AC/DC 84–155 V |
| Integrated Protection | Varistor |
| Number of Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 0.92 kg |
