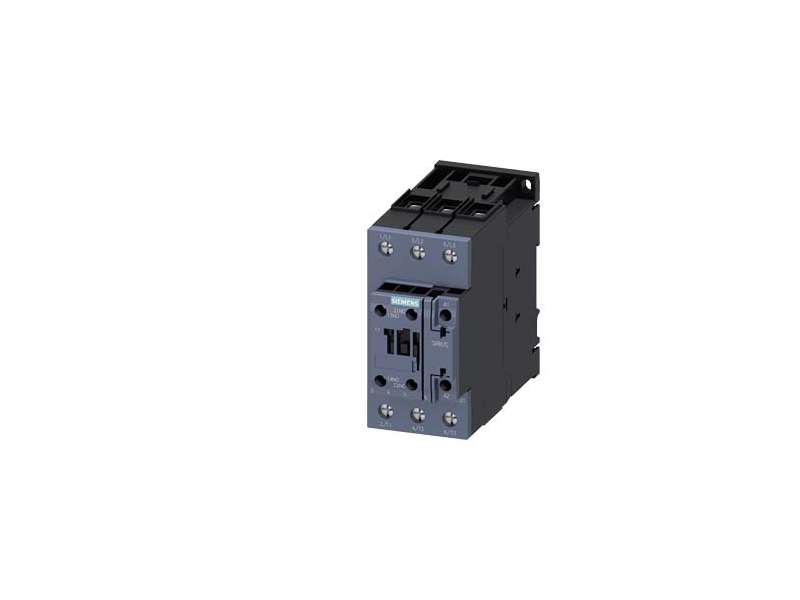

SIEMENS KONTAKTOR 3RT2036-1AG20 50A 110VAC 1O+1C
The 3RT2036-1AG20 power contactor is designed to control three-phase motors up to 22 kW at 400 V in AC-3 applications. It offers a rated current of 50 A, contact...
VAT-exclusive price: 10.048,30 |
VAT-inclusive price: 12.057,95 |
The 3RT2036-1AG20 power contactor is designed to control three-phase motors up to 22 kW at 400 V in AC-3 applications. It offers a rated current of 50 A, contact configuration of 1 NO + 1 NC, and a coil voltage of 110 V AC (50 / 60 Hz). With a 3-pole design, screw terminals, and Size S2 housing, it is ideal for demanding industrial automation tasks.
| Product Specification | |
|---|---|
| Product Name | 3RT2036-1AG20 |
| Type | Power Contactor |
| Rated Current (AC-3) | 50 A |
| Motor Power | 22 kW @ 400 V |
| Contact Configuration | 1 NO + 1 NC |
| Coil Voltage | 110 V AC, 50 / 60 Hz |
| Number of Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.10 kg |
