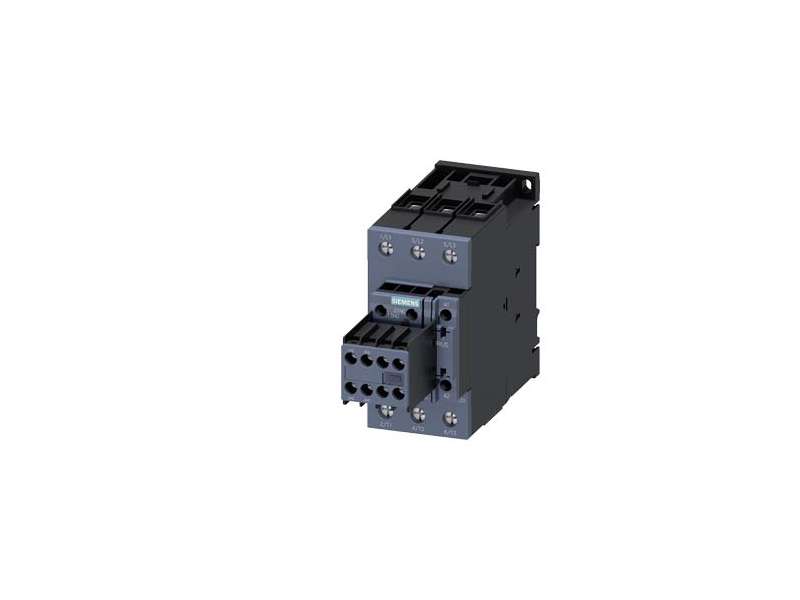

SIEMENS KONTAKTOR 3RT2037-1AP04 65A 230VAC 2O+2C
The 3RT2037-1AP04 is a three-phase contactor, Size S2, designed for switching motors up to 30 kW at 400 V in AC-3 operation. It features a 230 V AC (50 Hz)...
VAT-exclusive price: 15.024,98 |
VAT-inclusive price: 18.029,97 |
The 3RT2037-1AP04 is a three-phase contactor, Size S2, designed for switching motors up to 30 kW at 400 V in AC-3 operation. It features a 230 V AC (50 Hz) coil and four auxiliary contacts (2 NO + 2 NC). Screw terminals ensure safe and straightforward installation in industrial control panels.
| Product Specification | |
|---|---|
| Product Name | 3RT2037-1AP04 |
| Type | Power Contactor |
| Rated Current (AC-3) | 65 A |
| Motor Power | 30 kW @ 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Coil Voltage | 230 V AC, 50 Hz |
| Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.60 kg |
