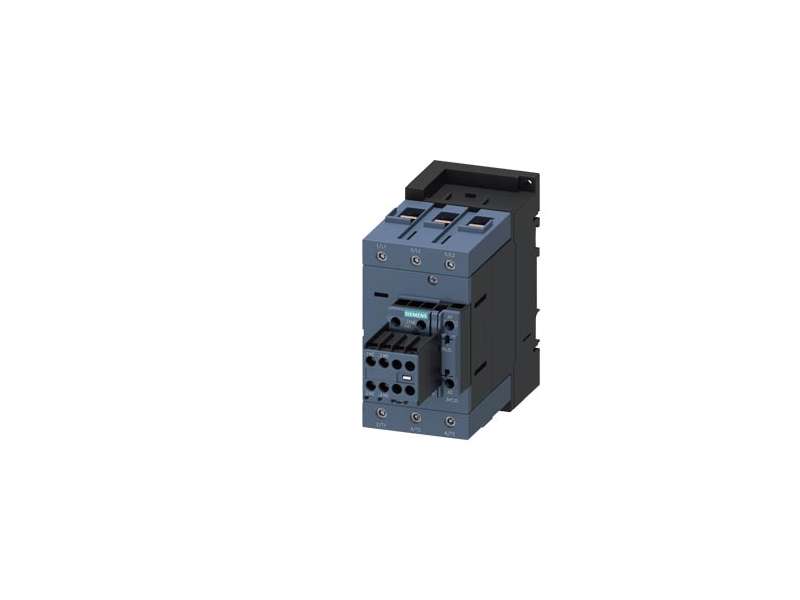

SIEMENS KONTAKTOR 3RT2045-1AP04 80A 230VAC 2O+2C
The Siemens 3RT2045-1AP04 is a three-phase industrial contactor, Size S3, designed for AC-3 applications with a rated current of 80 A and power up to 37 kW at 400...
VAT-exclusive price: 18.053,73 |
VAT-inclusive price: 21.664,48 |
The Siemens 3RT2045-1AP04 is a three-phase industrial contactor, Size S3, designed for AC-3 applications with a rated current of 80 A and power up to 37 kW at 400 V. It includes 2 NO + 2 NC auxiliary contacts, operates at 230 V AC (50 Hz), and features screw terminals. Ideal for reliable motor control and high-power switching in industrial environments.
| Product Specification | |
|---|---|
| Product Name | 3RT2045-1AP04 |
| Type | Power Contactor |
| Rated Current (AC-3) | 80 A |
| Motor Power | 37 kW @ 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Coil Voltage | 230 V AC / 50 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 2.40 kg |
