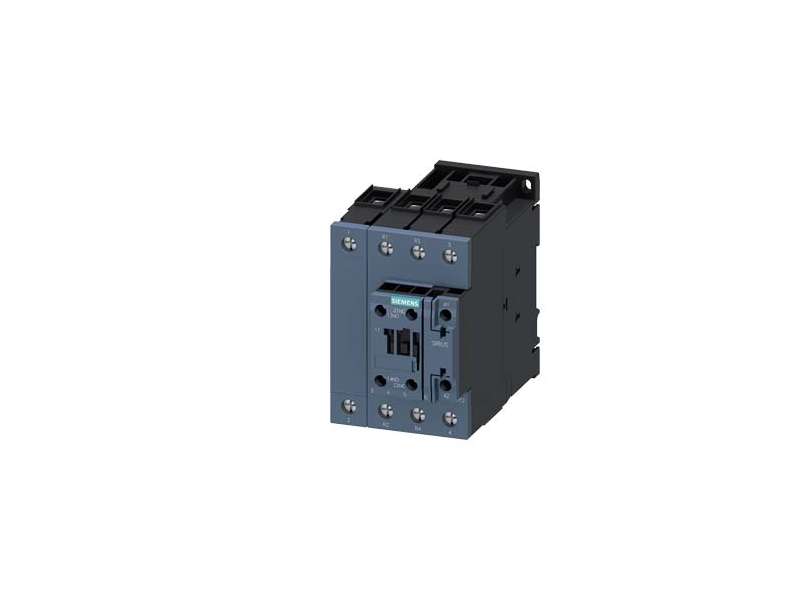

SIEMENS KONTAKTOR 3RT2535-1AP00 40A 2O+2C 230VAC
The 3RT2535-1AP00 is a 4-pole industrial power contactor designed for AC-3 applications, rated at 40 A and up to 18.5 kW at 400 V. It operates with a 230 V AC control...
VAT-exclusive price: 9.960,71 |
VAT-inclusive price: 11.952,86 |
The 3RT2535-1AP00 is a 4-pole industrial power contactor designed for AC-3 applications, rated at 40 A and up to 18.5 kW at 400 V. It operates with a 230 V AC control voltage (50 Hz) and includes 2 NO + 2 NC main contacts, along with integrated auxiliary contacts (1 NO + 1 NC). Sized S2 and featuring screw terminals, it is ideal for industrial motor control panels.
| Product Specification | |
|---|---|
| Product Name | 3RT2535-1AP00 |
| Contactor Type | Power Contactor |
| Rated Current (AC-3) | 40 A |
| Motor Power | 18.5 kW / 400 V |
| Control Voltage | 230 V AC / 50 Hz |
| Main Contacts | 2 NO + 2 NC |
| Auxiliary Contacts | 1 NO + 1 NC (integrated) |
| Number of Poles | 4 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 0.75 kg |
