Double-deck terminal block with a plug terminal, designed for conductor cross-sections up to 4mm². It supports a nominal current of 20A and a maximum voltage of 400V. Available in grey and beige colors, this terminal block provides secure and reliable connections for various electrical applications.

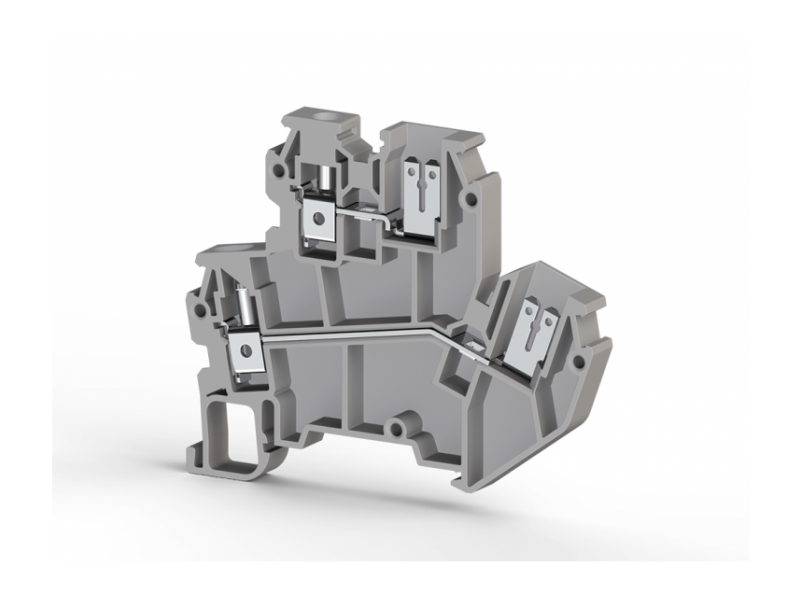

Klemsan Klemsan Dvospratna redna stezaljka PIK 4FS sa utičnim terminalom 4mm² ; 319809
Double-deck terminal block with a plug terminal, designed for conductor cross-sections up to 4mm². It supports a nominal current of 20A and a maximum voltage...
VAT-exclusive price: 243,83 |
VAT-inclusive price: 292,60 |
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 85 | |
| Weight (g) | --- | |
| Dimensions | Width | 6 mm |
| Length | 70.5 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 58.9 mm | |
| TSE / CE Technical Data | Nominal Voltage | 400 V ~ |
| Nominal Current | 20 A | |
| Cross Section | 4 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 mm² | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 | |
| ATEX Technical Data | Nominal Voltage | 400 V ~ |
| Nominal Current | 20 A | |
| Cross Section | 4 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² | |
| Minimum fine strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 6 mm² | |
| AWG Conductor Range | 26-10 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.5/0.8 Nm |
