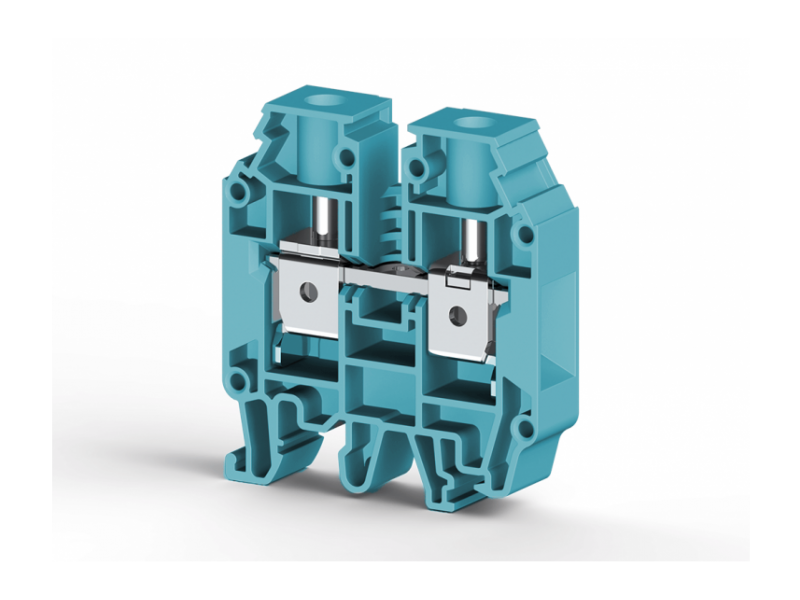

Klemsan 25mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 25 RD; 304291
Klemsan AVK 25 RD (304291) single-deck feed-through terminal block with screw connection. Designed for conductors up to 25 mm², made of PA insulation in blue...
VAT-exclusive price: 202,56 |
VAT-inclusive price: 243,07 |
Klemsan AVK 25 RD (304291) single-deck feed-through terminal block with screw connection. Designed for conductors up to 25 mm², made of PA insulation in blue color. Suitable for power distribution, control panels, and industrial automation systems.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | |
| Dimensions | |
| Width | 12 mm |
| Length | 52.80 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 58.70 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 101 A |
| Cross Section | 25 mm² |
| Standard | EN 60947-7-1 / N 60947-7-2 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 25 mm² |
| VDE Standard | IEC 60947-7-1 |
| UL / CSA Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 25 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 25 |
| Connection Data | |
| Minimum solid conductor cross section | 1.5 mm² |
| Maximum solid conductor cross section | 35 mm² |
| Minimum stranded conductor cross section | 1.5 mm² |
| Maximum stranded conductor cross section | 35 mm² |
| AWG Conductor Range | 12–2 |
| Connection Type | screw / vidalı |
| Insulation Stripping Length | 14 mm |
| Tightening Torque | 2.0 / 3.0 Nm |
