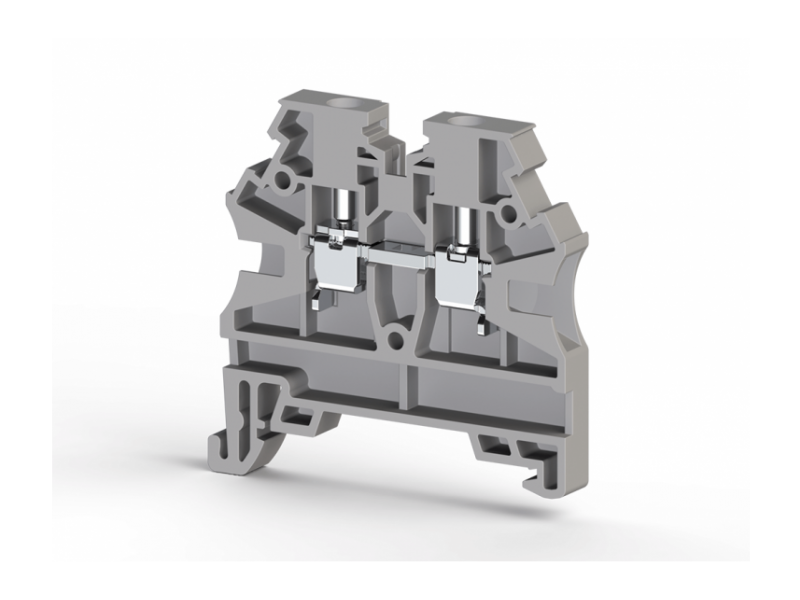

Klemsan Jednostruka standardna redna stezaljka AVK RD 2.5mm² 24A ; 304200
Single standard terminal block AVK 2.5 RD designed for conductors with a cross-section of 2.5 mm². It is made of high-quality PA (polyamide) material, ensuring...
VAT-exclusive price: 40,82 |
VAT-inclusive price: 48,99 |
Single standard terminal block AVK 2.5 RD designed for conductors with a cross-section of 2.5 mm². It is made of high-quality PA (polyamide) material, ensuring durability and safety in use. The terminal block supports a rated current of up to 24A and a maximum voltage of 750V, making it suitable for a wide range of electrical installation applications.
It comes in a base grey color and is available in 9 additional colors for easier identification and organization of connections in electrical panels.
Product Specification - Klemsan 2.5mm², Screw Type, Single Deck Feed Through Terminal Block
General Product Information
| Insulating Material | PA |
|---|---|
| Flammability Class (UL 94) | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
Dimensions
| Width | 5 mm |
|---|---|
| Length | 42.7 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 44.4 mm |
TSE / CE Technical Data
| Nominal Voltage | 750 V ~ |
|---|---|
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| Standard | EN 60947-7-1 |
VDE Technical Data
| Nominal Voltage | 750 V ~ |
|---|---|
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| VDE Standard | IEC 60947-7-1 |
UL / CSA Technical Data
| Nominal Voltage | 600 V ~ |
|---|---|
| Nominal Current | 20 A |
| Cross Section | 26-12 AWG |
ATEX Technical Data
| Nominal Voltage | 630 V ~ |
|---|---|
| Nominal Current | 23 A |
| Cross Section | 0.5 mm² |
Connection Data
| Minimum Solid Strand Cross Section | 0.5 mm² |
|---|---|
| Maximum Solid Strand Cross Section | 4 mm² |
| Minimum Fine Strand Cross Section | 0.5 mm² |
| Maximum Fine Strand Cross Section | 4 mm² |
| AWG Conductor Range | 26-12 |
| Connection Type | Screw |
| Insulation Stripping Length | 10 mm |
| Tightening Torque | 0.4 Nm |
