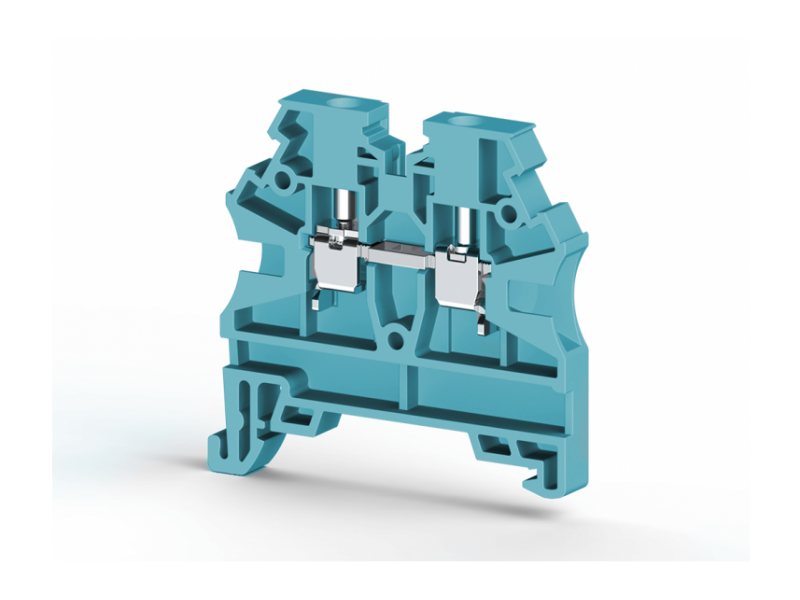

Klemsan 2,5mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 2,5 RD; 304201
Klemsan 2.5mm² screw-type single deck terminal blocks of premium quality, with PA insulation material in blue color. Model AVK 2.5 RD (code 304201) provides...
VAT-exclusive price: 40,82 |
VAT-inclusive price: 48,99 |
Klemsan 2.5mm² screw-type single deck terminal blocks of premium quality, with PA insulation material in blue color. Model AVK 2.5 RD (code 304201) provides reliable feed-through connections for electrical installations. Ideal for industrial and residential electrical applications.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing unit | 50 |
| Weight (g) | — |
| Dimensions | |
| Width | 5 mm |
| Length | 42.7 mm |
| Height (MR 32) | — mm |
| Height (MR 35x7.5) | 44.4 mm |
| TSE / CE Technical Data | |
| Nominal voltage | 750 V ~ |
| Nominal current | 24 A |
| Cross section | 2.5 mm² |
| Standard | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal voltage | 750 V ~ |
| Nominal current | 24 A |
| Cross section | 2.5 mm² |
| VDE standard | IEC 60947-7-1 |
| UL / CSA Technical Data | |
| Nominal voltage | 600 V ~ |
| Nominal current | 20 A |
| Cross section | 26–12 AWG |
| ATEX Technical Data | |
| Nominal voltage | 630 V ~ |
| Nominal current | 23 A |
| Cross section | 0.5 mm² |
| Connection Data | |
| Minimum solid conductor cross section | 0.5 mm² |
| Maximum solid conductor cross section | 4 mm² |
| Minimum flexible conductor cross section | 0.5 mm² |
| Maximum flexible conductor cross section | 4 mm² |
| AWG conductor range | 26–12 |
| Connection type | screw / threaded |
| Insulation stripping length | 10 mm |
| Tightening torque | 0.4 Nm |
