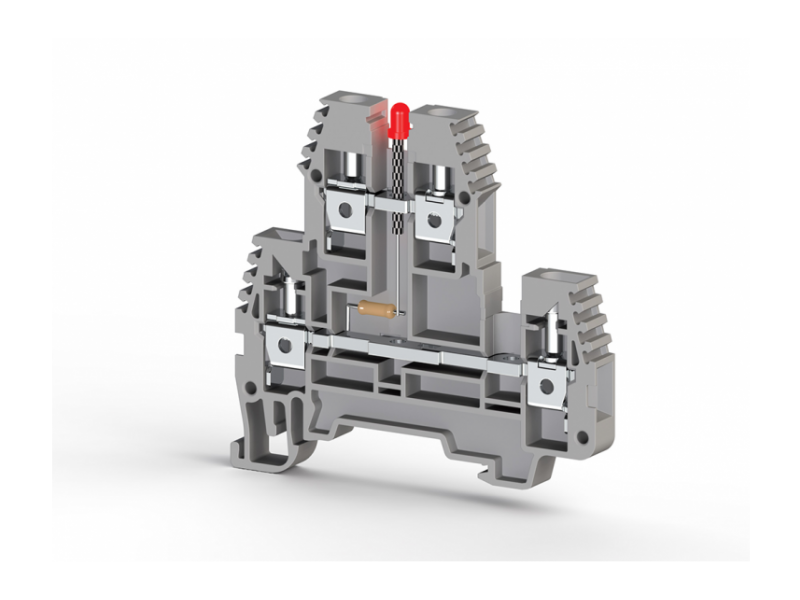

Klemsan 4mm2,screw type,24V AC with Led,double deck terminal block,Insulation material PA,Grey,PIK 4NLD ; 319319
The Klemsan 4mm² screw-type double deck terminal block is designed for 24V AC applications, featuring an integrated LED for clear indication. Constructed from...
VAT-exclusive price: 462,24 |
VAT-inclusive price: 554,69 |
The Klemsan 4mm² screw-type double deck terminal block is designed for 24V AC applications, featuring an integrated LED for clear indication. Constructed from durable PA insulation material in a grey color, this terminal block offers reliable performance for various electrical connections. Ideal for compact systems and high-quality installations.
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 20 | |
| Weight (g) | --- | |
| Dimensions | Width | 6 mm |
| Length | 64 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 61.3 mm | |
| TSE / CE Technical Data | Nominal Voltage | 24 AC V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | --- | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | 30 A | |
| Cross Section | 26-10 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | --- | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² | |
| Minimum fine strand cross section | 1.5 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 26-10 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 9 mm | |
| Tightening torque | 0.5 Nm |
