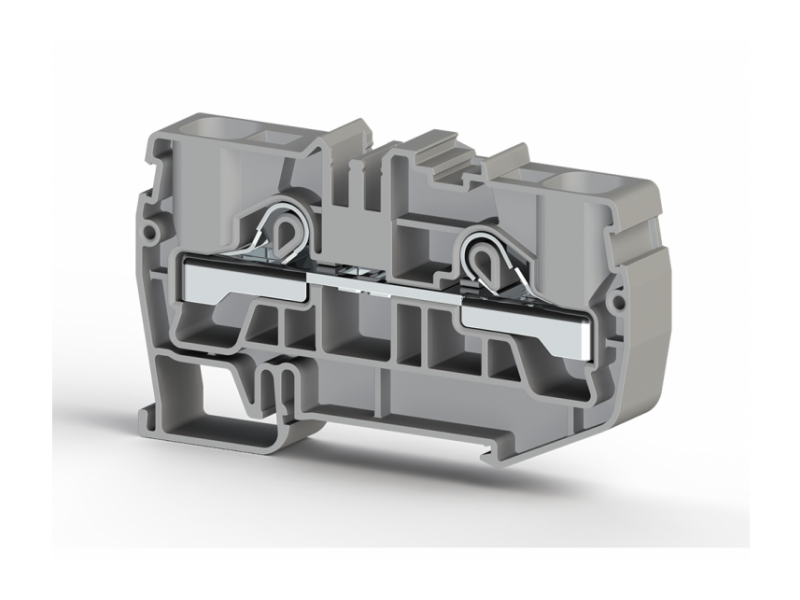

Klemsan Standardna utična redna stezaljka PYK 16 16mm² Siva; 307659
The PYK 16 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 16 mm², supporting a nominal current...
VAT-exclusive price: 219,13 |
VAT-inclusive price: 262,96 |
The PYK 16 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 16 mm², supporting a nominal current of 76 A and a maximum voltage of 1000 V. Manufactured from durable PA material, it ensures dependable performance and easy installation. Available in grey.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | 12 mm |
| Length | 81.45 mm |
| Height (MR 32) | 57.00 mm |
| Height (MR 35x7.5) | 49.50 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 1000 V ~ |
| Nominal Current | 76 A |
| Cross Section | 25 mm² |
| Standard | IEC 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | --- |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | --- |
| ATEX Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | --- |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 25 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 16 mm² |
| AWG Conductor Range | 4 |
| Connection Type | practical spring, push-in/pratik yay baskılı |
| Insulation Stripping length | 18 mm |
| Tightening torque | --- |
