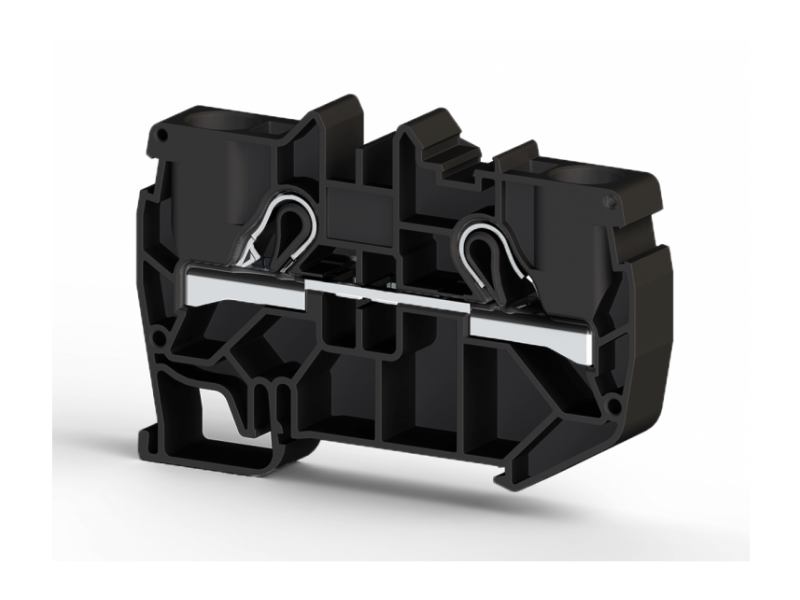

Klemsan Standardna utična redna stezaljka PYK 10 10mm² ; 307135
The PYK 10 is a standard push-in terminal block with one input and one output terminal. Designed for conductors up to 10 mm², it supports a nominal current...
VAT-exclusive price: 160,95 |
VAT-inclusive price: 193,14 |
The PYK 10 is a standard push-in terminal block with one input and one output terminal. Designed for conductors up to 10 mm², it supports a nominal current of 57 A and a maximum voltage of 800 V. Made from durable PA material, it offers reliable performance, user-friendly installation, and long service life. Available in 9 different colors for easy wiring identification.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | 10 mm |
| Length | 75.40 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 52.20 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 57 A |
| Cross Section | 10 mm² |
| Norm | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 10 mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 10 |
| ATEX Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 57 A |
| Cross Section | --- |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 16 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 10 mm² |
| AWG Conductor Range | 20-6 |
| Connection Type | practical spring, push-in / pratik yay baskılı |
| Insulation Stripping length | 15 mm |
| Tightening torque | --- |
