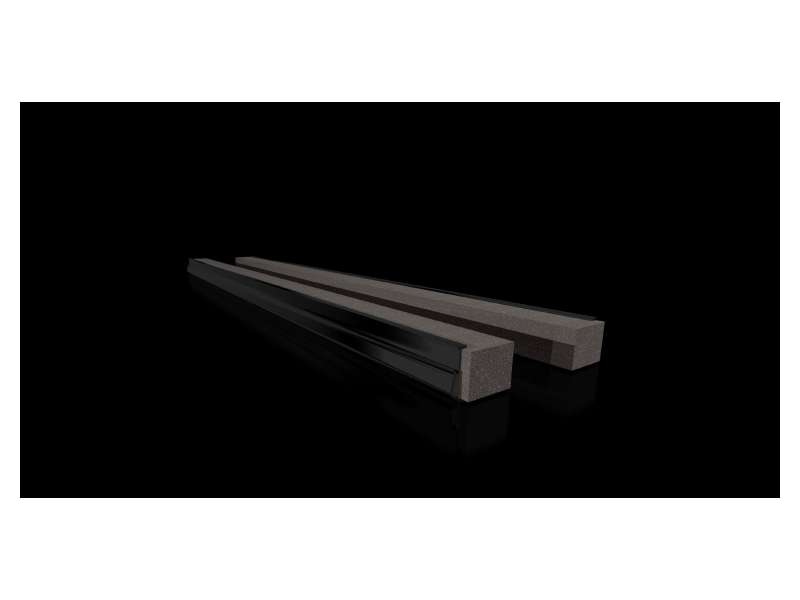

Rittal VX Al-PU sekcija za uvod kablova- SREDINA, za ormane 800mm | 8618801
The VX Al-PU cable entry section (middle) for 800mm enclosures is designed for efficient and flexible cable routing. Mounted directly on the gland plates, it enables...
VAT-exclusive price: 4.400,00 |
VAT-inclusive price: 5.280,01 |
The VX Al-PU cable entry section (middle) for 800mm enclosures is designed for efficient and flexible cable routing. Mounted directly on the gland plates, it enables cables to be guided onto a clamp rail without excessive bending. In combination with a cable clamp rail, it ensures precise adjustment between the cable entry and the mounting plate.
| Benefits | Simple assembly. Full-surface support. High level of sealing of cables inserted into the enclosure. |
| Applications | For top-mounting on gland plates. |
| Material | Hard PVC, flame-resistant, self-extinguishing. Temperature resistant to +60 °C. Seal: PU foam. Cross-section: 30 x 25 mm. |
| Supply includes | Plug-in sections, incl. foam rubber clamp strip |
| Note | Two pieces required per cable entry point. From an enclosure width of 1000 mm, the base assembly is divided into two sections in width. Two cable entry points (left/right) may be used. |
| To fit | Enclosure type: VX = 800 mm, VX SE, CX pedestal, CX one-piece console |
| Packs of | 2 pc(s) |
| Net weight | 0.22 kg |
| Gross weight | 0.24 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177922754 |
| ETIM 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | VX Section for cable entry, centre, for W: 800 mm |
