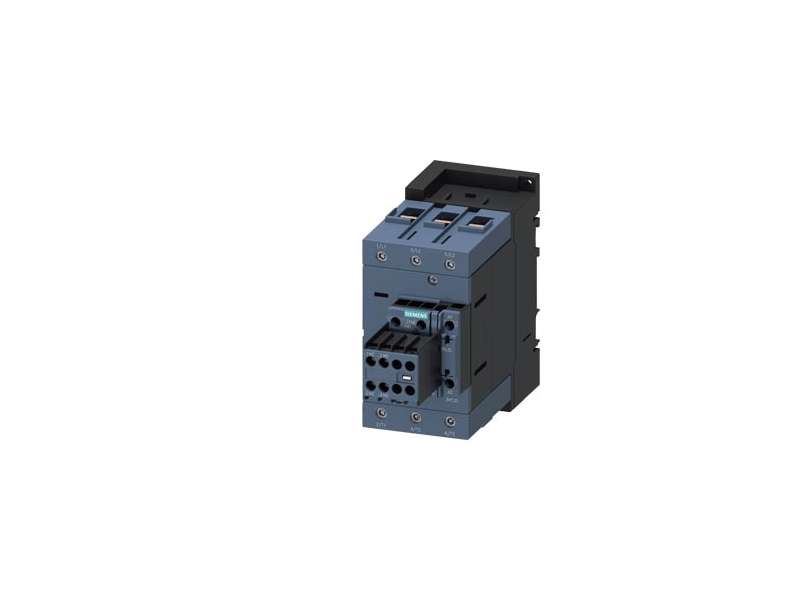

SIEMENS KONTAKTOR 3RT2046-1AP04 95A 230VAC
The 3RT2046-1AP04 is a heavy-duty three-phase contactor designed for motor control up to 45 kW at 400 V in AC-3 operation. It operates with a 230 V AC control voltage...
VAT-exclusive price: 22.389,42 |
VAT-inclusive price: 26.867,31 |
The 3RT2046-1AP04 is a heavy-duty three-phase contactor designed for motor control up to 45 kW at 400 V in AC-3 operation. It operates with a 230 V AC control voltage (50 Hz) and features 2 NO + 2 NC auxiliary contacts along with 3 main NO poles. Size S3 with screw terminals ensures secure installation, making it suitable for demanding industrial environments.
| Product Specification | |
|---|---|
| Product Name | 3RT2046-1AP04 |
| Type | Power Contactor |
| Rated Current (AC-3) | 95 A |
| Motor Power | 45 kW @ 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Control Voltage | 230 V AC / 50 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 2.70 kg |
