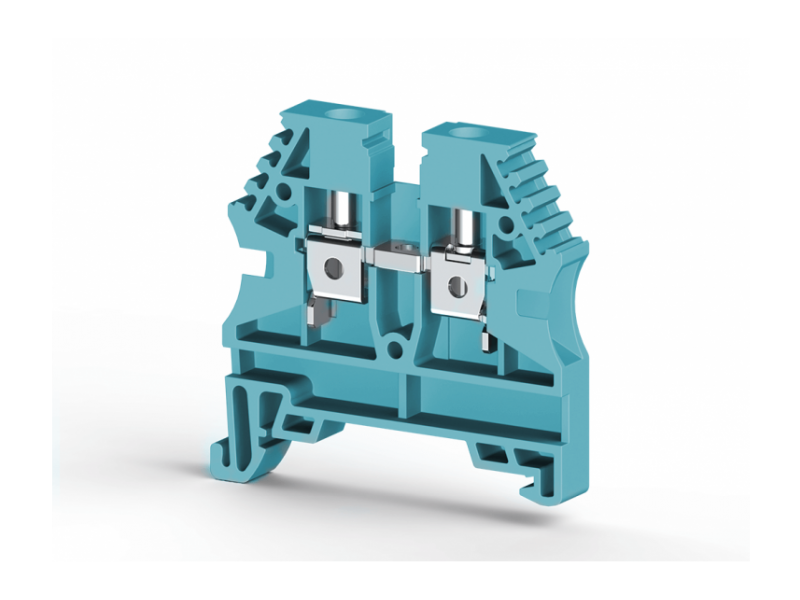

Klemsan 10mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue, AVK 10; 304151
Klemsan AVK 10 single-deck feed-through terminal block (304151) with screw connection, designed for conductors up to 10 mm². Made of PA insulating material,...
VAT-exclusive price: 78,14 |
VAT-inclusive price: 93,77 |
Klemsan AVK 10 single-deck feed-through terminal block (304151) with screw connection, designed for conductors up to 10 mm². Made of PA insulating material, in blue color. An ideal choice for industrial electrical installations and distribution panels.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 100 |
| Weight (g) | |
| Dimensions | |
| Width | 10 mm |
| Length | 44.2 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 44.5 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 630 V ~ |
| Nominal Current | 57 A |
| Cross Section | 10 mm² |
| Norm | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | 630 V ~ |
| Nominal Current | 57 A |
| Cross Section | 10 mm² |
| VDE Norm | IEC 60947-7-1 |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 65 A |
| Cross Section | AWG/16-6 |
| ATEX Technical Data | |
| Nominal Voltage | 500 V ~ |
| Nominal Current | 50 A |
| Cross Section | 6 |
| Connection Data | |
| Minimum solid strand cross section | 1.5 mm² |
| Maximum solid strand cross section | 16 mm² |
| Minimum fine strand cross section | 1.5 mm² |
| Maximum fine strand cross section | 10 mm² |
| AWG Conductor Range | 16-6 |
| Connection Type | screw/vidalı |
| Insulation Stripping length | 12 mm |
| Tightening torque | 1.2 Nm |
