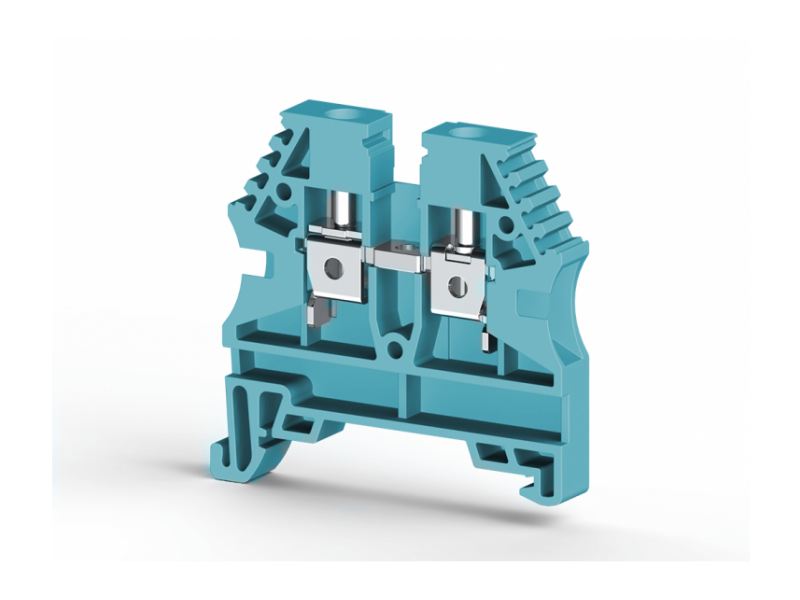

Klemsan 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 4 RD; 304211
Klemsan AVK 4 RD terminal block for conductors up to 4mm² and 32A. Screw-type connection, PA insulation, compatible with DIN rail. Ideal for industrial and...
VAT-exclusive price: 46,63 |
VAT-inclusive price: 55,95 |
Klemsan AVK 4 RD terminal block for conductors up to 4mm² and 32A. Screw-type connection, PA insulation, compatible with DIN rail. Ideal for industrial and residential electrical installations. Product code: 304211.
| General Product Information | Insulating Material | PA |
| Flammability Class acc. to UL 94 | V2 | |
| Packing Unit | 50 | |
| Weight (g) | — | |
| Dimensions | Width | 6 mm |
| Length | 42.7 mm | |
| Height (MR 32) | — mm | |
| Height (MR 35x7.5) | 44.4 mm | |
| TSE / CE Technical Data | Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| Standard | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| VDE Standard | IEC 60947-7-1 | |
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ |
| Nominal Current | 30 A | |
| Cross Section | AWG 26–10 | |
| ATEX Technical Data | Nominal Voltage | 630 V ~ |
| Nominal Current | 29 A | |
| Cross Section | 0.5 mm² | |
| Connection Data | Minimum Solid Conductor Cross Section | 0.5 mm² |
| Maximum Solid Conductor Cross Section | 6 mm² | |
| Minimum Stranded Conductor Cross Section | 0.5 mm² | |
| Maximum Stranded Conductor Cross Section | 6 mm² | |
| AWG Conductor Range | 26–10 | |
| Connection Type | Screw / Vidalı | |
| Insulation Stripping Length | 10 mm | |
| Tightening Torque | 0.5 Nm |
