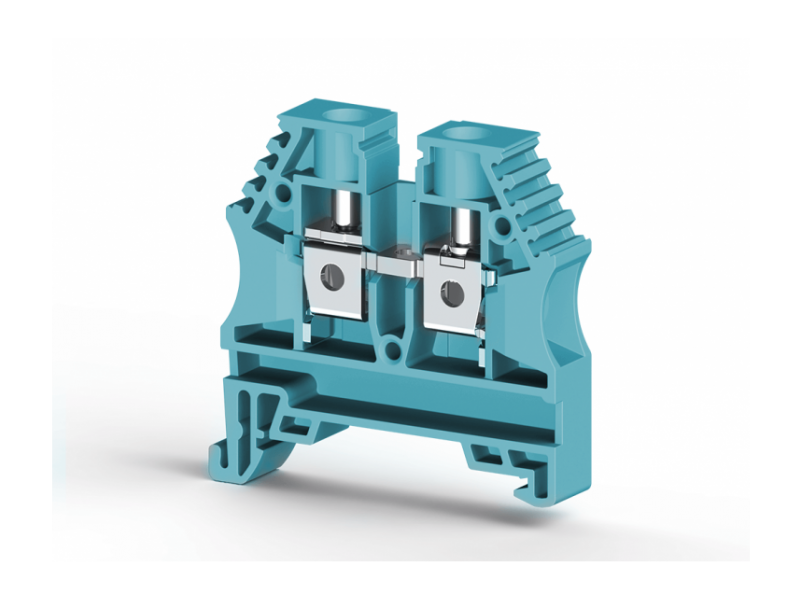

Klemsan Jednostruka redna stezaljka plava 6mm2 ; 304141
Klemsan blue single deck terminal block for cables with a cross-section of 6mm², featuring screw connection and PA insulating material. Rated current up to...
VAT-exclusive price: 55,22 |
VAT-inclusive price: 66,27 |
Klemsan blue single deck terminal block for cables with a cross-section of 6mm², featuring screw connection and PA insulating material. Rated current up to 40A and voltage up to 750V. Ideal for industrial and residential electrical installations. Easy mounting on DIN rail and secure connection. Model 304141.
| General Product Information | Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | ||
| Dimensions | Width | 8 mm |
| Length | 44.2 mm | |
| Height (MR 32) | --- mm | |
| Height (MR 35x7.5) | 44.5 mm | |
| TSE / CE Technical Data | Nominal Voltage | 630 V ~ |
| Nominal Current | 41 A | |
| Cross Section | 6 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | 630 V ~ |
| Nominal Current | 23 A | |
| Cross Section | 6 mm² | |
| VDE Norm | IEC 60947-7-1 | |
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ |
| Nominal Current | 50 A | |
| Cross Section | AWG/26-8 | |
| ATEX Technical Data | Nominal Voltage | 630 V ~ |
| Nominal Current | 36 A | |
| Cross Section | 6 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid Strand cross section | 10 mm² | |
| Minimum fine Strand cross section | 1.5 mm² | |
| Maximum fine strand cross section | 6 mm² | |
| AWG Conductor Range | 26-8 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 12 mm | |
| Tightening torque | 0.8 Nm |
