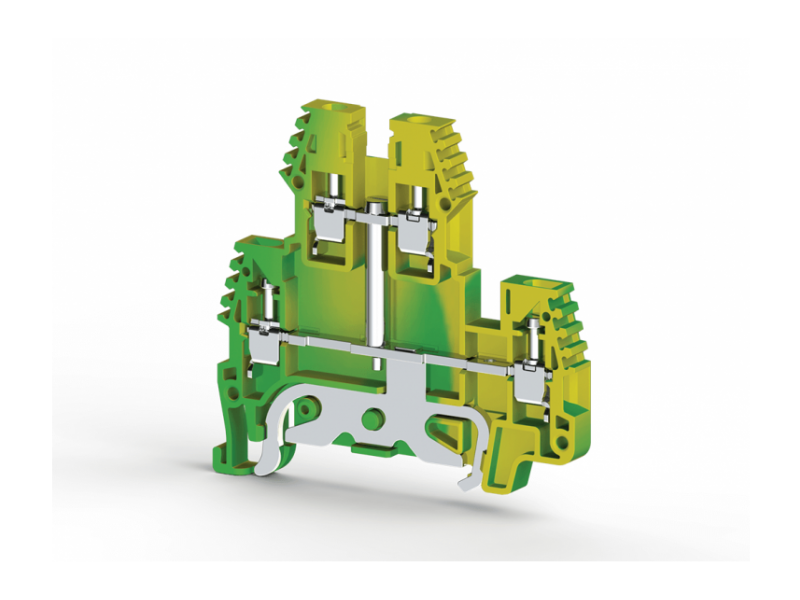

Klemsan Dvospratna redna stezaljka za provodnike uzemljenja PIK NT 2.5mm² ; 336560
Dvospratna redna vijčana stezaljka za provodnike uzemljenja, napravljena od izdržljivog izolacionog materijala PA. Predviđena za provodnike poprečnog preseka...
VAT-exclusive price: 419,20 |
VAT-inclusive price: 503,04 |
| General Product Information | Insulating material | PA |
|---|---|---|
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | --- | |
| Dimensions | Width | 5 mm |
| Length | 64.00 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 61.30 mm | |
| TSE / CE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2.5 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2.5 mm² | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2.5 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2.5 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 4 mm² | |
| Minimum fine strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 26-12 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.4/0.6 Nm |
