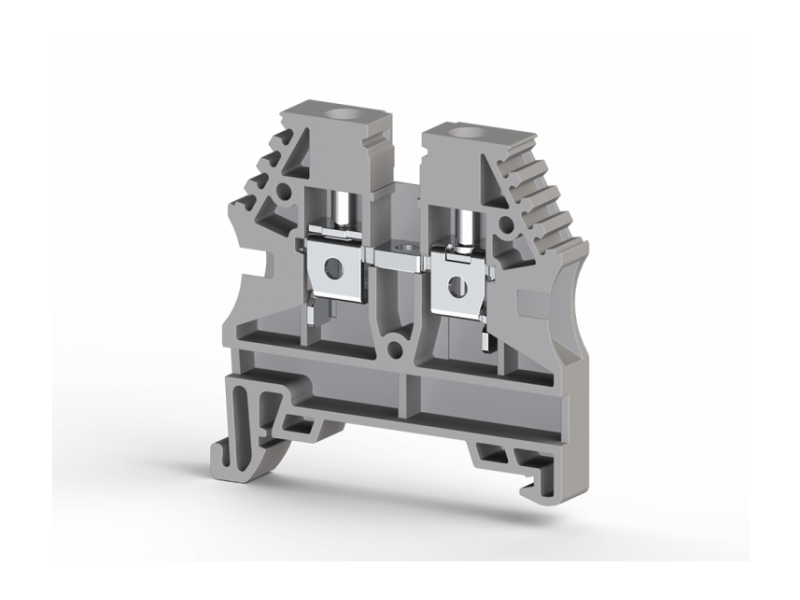

Klemsan Jednostruka standardna redna stezaljka AVK 4mm² 32A ; 304130
Klemsan AVK 4 is a single-level terminal block designed for conductors up to 4 mm² and currents up to 32 A. It is made of high-quality PA material with a UL...
VAT-exclusive price: 45,69 |
VAT-inclusive price: 54,83 |
Klemsan AVK 4 is a single-level terminal block designed for conductors up to 4 mm² and currents up to 32 A. It is made of high-quality PA material with a UL 94-V2 flammability rating. The terminal offers secure screw connection and easy mounting on DIN rail.
Model 304130 is ideal for electrical installations in industrial, construction, and residential applications. It is compliant with EN and IEC standards and available in gray, with multiple color options for easier conductor identification.
| General Product Information | |
|---|---|
| Insulating Material | PA |
| Flammability Class UL 94 | V2 |
| Packing Unit | 100 |
| Weight (g) | |
| Dimensions | |
| Width | 6 mm |
| Length | 44.2 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 44.5 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A |
| Cross Section | 4 mm² |
| Standard | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A |
| Cross Section | 4 mm² |
| VDE Standard | IEC 60947-7-1 |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 30 A |
| Cross Section | AWG/26-10 |
| ATEX Technical Data | |
| Nominal Voltage | 400 V ~ |
| Nominal Current | 28 A |
| Cross Section | 4 mm² |
| Connection Data | |
| Minimum Solid Conductor Cross Section | 0.5 mm² |
| Maximum Solid Conductor Cross Section | 6 mm² |
| Minimum Stranded Conductor Cross Section | 1.5 mm² |
| Maximum Stranded Conductor Cross Section | 4 mm² |
| AWG Conductor Range | 26-10 |
| Connection Type | Screw / Vidalı |
| Insulation Stripping Length | 10 mm |
| Tightening Torque | 0.5 Nm |
