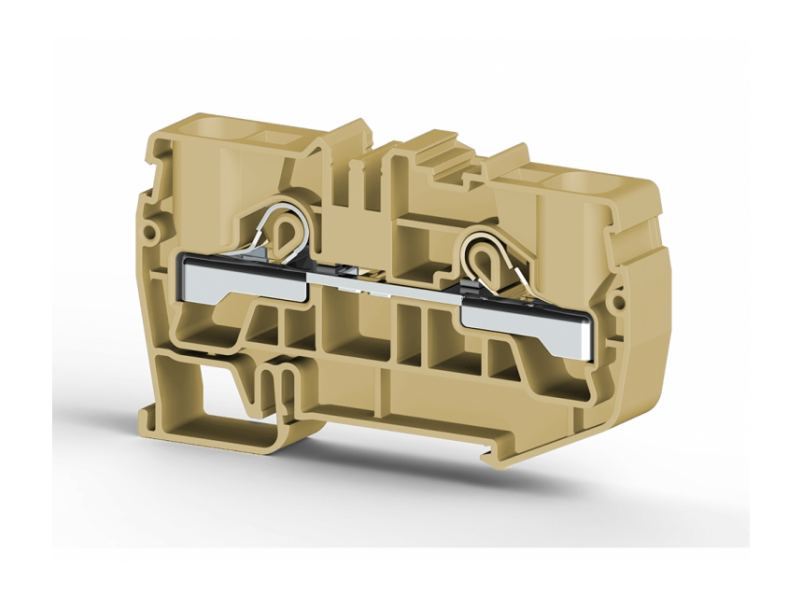

Klemsan Standardna utična redna stezaljka PYK 16 16mm² ; 307650
The PYK 16 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 16 mm², supporting a nominal current...
VAT-exclusive price: 180,05 |
VAT-inclusive price: 216,06 |
The PYK 16 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 16 mm², supporting a nominal current of 76 A and a maximum voltage of 1000 V. Made from durable PA material, it provides high reliability, safety, and easy installation. Available in grey and beige.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | mm |
| Length | mm |
| Height (MR 32) | mm |
| Height (MR 35x7.5) | mm |
| TSE / CE Technical Data | |
| Nominal Voltage | V ~ |
| Nominal Current | A |
| Cross Section | mm² |
| Norm | --- |
| VDE Technical Data | |
| Nominal Voltage | V ~ |
| Nominal Current | A |
| Cross Section | mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | V ~ |
| Nominal Current | A |
| Cross Section | --- |
| ATEX Technical Data | |
| Nominal Voltage | V ~ |
| Nominal Current | A |
| Cross Section | --- |
| Connection Data | |
| Minimum solid strand cross section | mm² |
| Maximum solid strand cross section | mm² |
| Minimum fine strand cross section | mm² |
| Maximum fine strand cross section | mm² |
| AWG Conductor Range | --- |
| Connection Type | --- |
| Insulation Stripping length | mm |
| Tightening torque | Nm |
