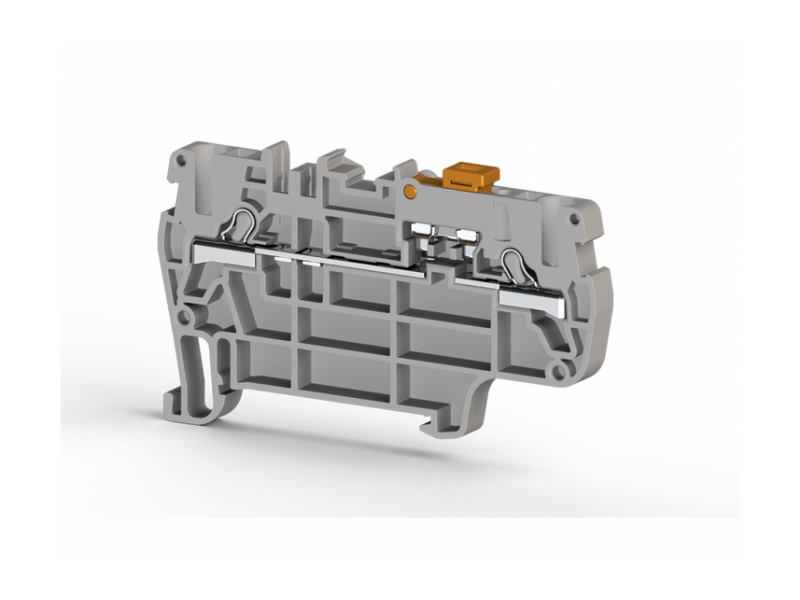

Klemsan Standardna utična redna stezaljka PYK A 2,5mm2; 307169
Standard plug-in terminal block PYK 2.5A with one input and one output terminal. Designed for conductors with a cross-section of up to 2.5 mm², supporting a...
VAT-exclusive price: 171,86 |
VAT-inclusive price: 206,23 |
Standard plug-in terminal block PYK 2.5A with one input and one output terminal. Designed for conductors with a cross-section of up to 2.5 mm², supporting a nominal current of 20 A and a maximum voltage of 400 V. Made from durable polyamide (PA), ensuring reliability and long service life. Easy to install and use. Available in grey color, suitable for standard electrical installations.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | 5 mm |
| Length | 70.8 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 43.7 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 400 V ~ |
| Nominal Current | 20 A |
| Cross Section | 2.5 mm² |
| Norm | EN 60947-7-3 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 2.5 mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 2.5 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 2.5 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 4 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 4 mm² |
| AWG Conductor Range | 22-12 |
| Connection Type | practical spring, push-in / pratik yay baskılı |
| Insulation Stripping length | 10 mm |
| Tightening torque | --- |
