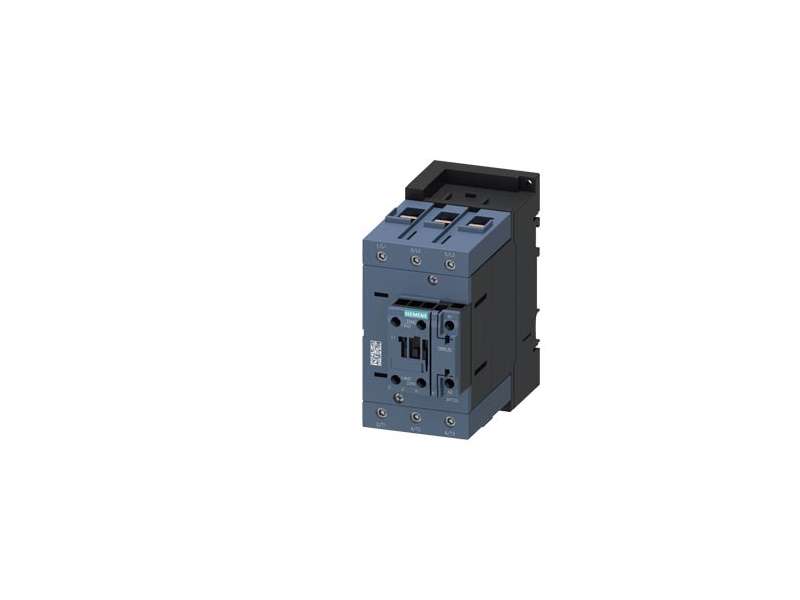

SIEMENS KONTAKTOR 3RT2045-1AK60 80A 110VAC 1O+1C
The 3RT2045-1AK60 is a three-phase industrial contactor, Size S3, rated at 80 A and suitable for motors up to 37 kW at 400 V in AC-3 applications. It operates...
VAT-exclusive price: 17.018,09 |
VAT-inclusive price: 20.421,71 |
The 3RT2045-1AK60 is a three-phase industrial contactor, Size S3, rated at 80 A and suitable for motors up to 37 kW at 400 V in AC-3 applications. It operates on a 110 V AC coil (50 Hz) or 120 V AC (60 Hz), includes 1 NO + 1 NC auxiliary contact, and is equipped with screw terminals for secure installation in electrical control systems.
| Product Specification | |
|---|---|
| Product Name | 3RT2045-1AK60 |
| Type | Power Contactor |
| Rated Current (AC-3) | 80 A |
| Motor Power | 37 kW @ 400 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Coil Voltage | 110 V AC / 50 Hz, 120 V AC / 60 Hz |
| Poles | 3 |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 2.40 kg |
