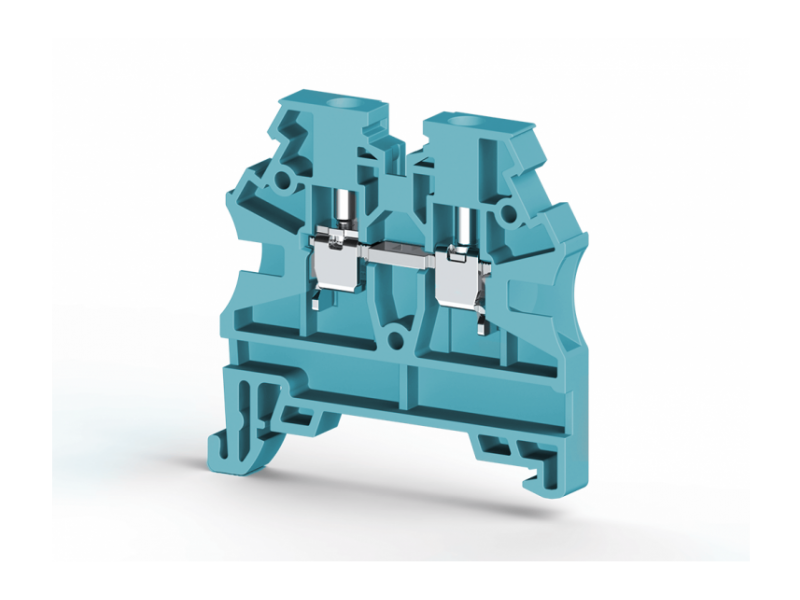

Klemsan Jednostruka standardna redna stezaljka AVK 2.5mm² 24A , plava boja ; 304121
Klemsan AVK single standard terminal block for electrical installations, with a cross-section of 2.5mm², nominal current of 24A, in blue color, model 304121...
VAT-exclusive price: 41,30 |
VAT-inclusive price: 49,56 |
Klemsan AVK single standard terminal block for electrical installations, with a cross-section of 2.5mm², nominal current of 24A, in blue color, model 304121 – a reliable solution for secure connection and cable organization in industrial and residential installations.
| General Product Information | |
|---|---|
| Insulating Material | PA |
| Flammability Class according to UL 94 | V2 |
| Packing Unit | 50 |
| Weight (g) | — |
| Dimensions | |
| Width | 5 mm |
| Length | 42.7 mm |
| Height (MR 32) | — mm |
| Height (MR 35x7.5) | 44.4 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| Standard | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| VDE Standard | IEC 60947-7-1 |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 20 A |
| Cross Section | 26–12 AWG |
| ATEX Technical Data | |
| Nominal Voltage | 630 V ~ |
| Nominal Current | 23 A |
| Cross Section | 0.5 mm² |
| Connection Data | |
| Minimum Solid Conductor Cross Section | 0.5 mm² |
| Maximum Solid Conductor Cross Section | 4 mm² |
| Minimum Flexible Conductor Cross Section | 0.5 mm² |
| Maximum Flexible Conductor Cross Section | 4 mm² |
| AWG Conductor Range | 26–12 |
| Connection Type | screw / threaded |
| Insulation Stripping Length | 10 mm |
| Tightening Torque | 0.4 Nm |
