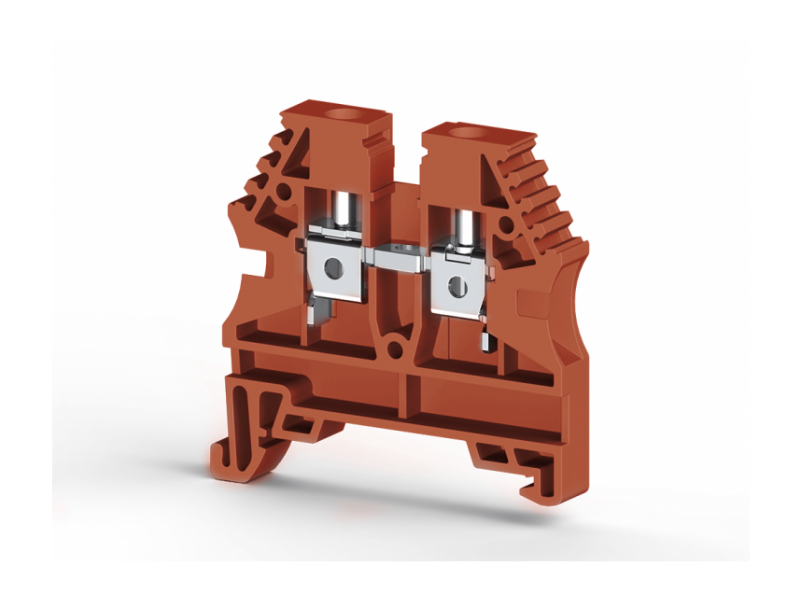

Klemsan 4mm2,screw type, single deck feed through terminal block, Insulation material PA, Red, AVK 4; 304134
Klemsan AVK 4mm² single deck terminal block with screw connection, insulation material PA, nominal current 32A, ideal for safe and reliable electrical connections...
VAT-exclusive price: 45,69 |
VAT-inclusive price: 54,83 |
Klemsan AVK 4mm² single deck terminal block with screw connection, insulation material PA, nominal current 32A, ideal for safe and reliable electrical connections in industrial and residential installations. Red color for easier cable identification. Model 304134.
| General Product Information | Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 100 | |
| Weight (g) | — | |
| Dimensions | Width | 6 mm |
| Length | 44.2 mm | |
| Height (MR 32) | — mm | |
| Height (MR 35x7.5) | 44.5 mm | |
| TSE / CE Technical Data | Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| VDE Norm | IEC 60947-7-1 | |
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ |
| Nominal Current | 30 A | |
| Cross Section | AWG/26-10 | |
| ATEX Technical Data | Nominal Voltage | 400 V ~ |
| Nominal Current | 28 A | |
| Cross Section | 4 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid Strand cross section | 6 mm² | |
| Minimum fine Strand cross section | 1.5 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 26-10 | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.5 Nm |
